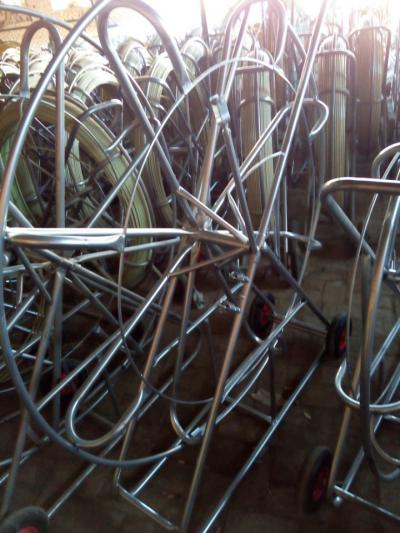

Fibreglass rodder duct fish snake cable puller 4.5mm x 100 mtrs
Technical Date of Fiberglass Duct Rodder Specification Rod Diameter (mm) Φ 4.5-Φ 16 Rod Length (m) 30m~500m Frame Spec. (mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, 420x180x400,etc. Material: Fiber glass rod inner, Extruded by fiber glass and high strength resin at high temperature Fiber glass rod outer, High Density polyethylene coating Metal Frame: Steel with high-temperature sprayed plastic or hot dip galvanized Physical Property Fiber glass content:75-80% Density > 1.9gr/cm3 Working environment-40° C to +80° C Minimum Pulling strength 4000N +/-5% Consistency of rod 137gr/m Flexural Modulus > 46.500Mpa Elongation at break 2.5-3% Min Bending Radius 388mm
Available in lengths of 100m,200m and 300m with a wheeled cage for easy transport. The unit is available with meter markings and comes standard with drag brake to control payout, a swivel pulling eye.
High Density polyethylene (Grade: for the insulating and jacketing of Telecommunication Cables) is used in the outer diameter coating.Duct Rodders will equipped with different size reel according to t
our highest quality rod, designed for heavy-duty applications. It gets its extra strength from a unique construction process that ensures greater rigidity and strength, enabling it to endure the
Fiberglass duct rodder features 1.Light weight,durable,resistance to acid,alkali,aging resistant,corrosion resistant. 2.High tensile strength and bending properties to make it go through narrow pip
Features Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod. Assembly: metal frame and rubber wheels, Wheel
Fiberglass duct rodder features 1.Light weight,durable,resistance to acid,alkali,aging resistant,corrosion resistant. 2.High tensile strength and bending properties to make it go through narrow pip
Brand-New High Quality FibreGlass Duct Rodders or Snake Pullers can be used for NBN, Telecommunication, Electrician and other Department HDPE Pipe Cable, the specific tapes as push-pull tools.
1. The model steel and wire one-piece fusion, more wear-resisting, safe load of 300 kg。 2. Spring steel wire head, can rotate 360 degrees, can be bent into any of about 90 ° angle, the elasti
Fiberglass duct rodder features 1.Light weight,durable,resistance to acid,alkali,aging resistant,corrosion resistant. 2.High tensile strength and bending properties to make it go through narrow pip
