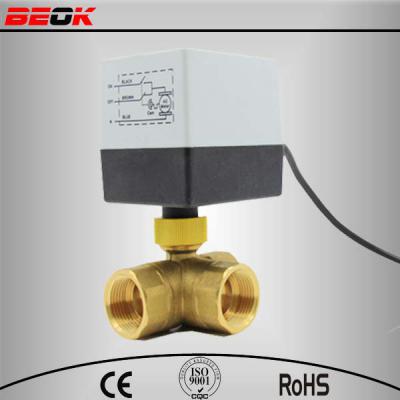

BKV series of motorized ball valves are used to controlthe on/off of the water system in HVAC system, consistingof actuator and valve body. Actuator (driver) adoptssynchronous motor driver for its stable performance. Internallimit contacts and energy saving design in valve, can cut offthe power when the valve is fully opened or closed.We suggest you use this product together with ourthermostats.Remark : Generally, the default state of valve door is normallyclosed. If you have any special request, please let us know. ◆Working Voltage: AC220V±10%, 50/60Hz (Special-Made: 24VAC)◆Power Consumption: 4W(only when you open and close the valve)◆Running Time of Each Action: ≤15S (Valve-On); ≤15S(Valve-Off)◆Nominal Pressure: 2.5Mpa◆Applied Medium: Cold or hot water, glycol water liquor (≤50%).◆Medium Temperature: 2-90℃◆Grade of Protection: IP54◆Safety Class: II (Double Insulation)◆Material of Valve Body: Brass ( Surface is plated with nickel)◆Material of Actuator: Outer Cover: ABS+PC Engineering Plastic
Thermostat SpecRoom ther Air conditioner indoor digital mechanical thermostat mostatTXM10-AC series of thermostats are widely used to control the terminals of central air-conditioning syste
TSL600-AC series of thermostats are widely used to control the terminals of central air-conditioning system in the business, industrial and civil constructions, such as fan coil, m
Product Summary:GKV 200 series of motorized valves are used to control the on/offof fan coil in air-conditioning system, central heating and flux in watersystem.The valves are divided into two parts,
Product Description:RZ-AN 230 thermal actuator is a two point form switching devicewhich has been tested by TUV. It is usually applied to controlradiator, floor heating system or zone valves. It
Thermostat SpecRoom ther Air conditioner indoor digital mechanical thermostat mostatTXM10-AC series of thermostats are widely used to control the terminals of central air-conditioning system in the bu
TXM10-AC series of thermostats are widely used to control the terminals of central air-conditioning system in the business, industrial and civil constructions, such as fan coil,motorized valve an
