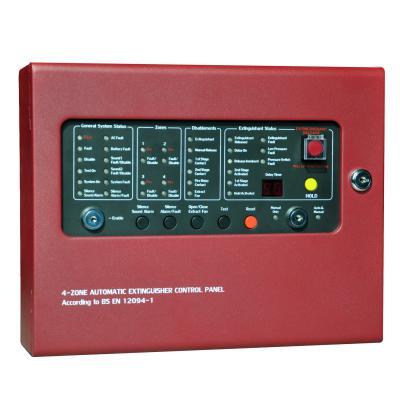

Fire Alarm and gas extinguishment panel

CM1004 is 4 zones conventional Fire fighting panel with fire alarm and gas extinguishing controlling. The automatic fire extinguish panel is designed in accordance with EN54-2, EN54-4 and EN12094. It is a combined fire alarm control panel and extinguishing system with 4 detection zones. It can automatically release fire extinguishing and activate solenoid electric valve, extract fan and igniting actuator. It is with extinguishing release button on alarm panel for manual activate gas extinguishing. Panel operation can be enabled or disabled. It is with gas leakage pressure detection switch and extinguishing released upon pressure switch operated. There are evacuate, silence, Test, reset and extract fan button on panel for operation. Two NAC circuits for sounders output and can be enabled and disabled on panel. There are relay contacts of fault relay, fire relay, 1st stage alarm, 2nd stage alarm, extract relay. Fire signal system at http://www.vedardalarm.com/conventional-fire-alarm-systems-c-11Technical specification: Size: 383mm W*295mm H *87mm D metal enclosure Main power supply: 90-270VAC 50Hz/60Hz Power supply current: 3Amps total including battery charge 28V +/-2V Battery type: Two 12 volt sealed lead acid in series. Current draw in post discharge condition with solenoid output active: 0.31Amps NAC outputs(sounder and bell circuit): 26 -28V DC fused at 500mA with electronic fuse Number of detectors per zone:
