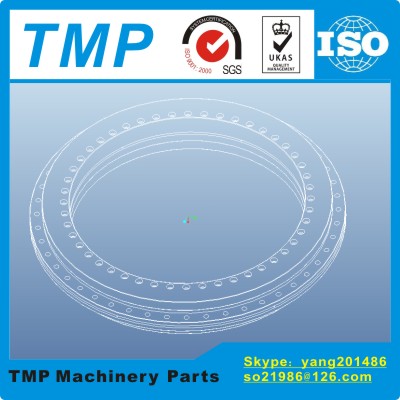

Axial radial bearings YRT100 (100x185x38mm) Rotary Table Bearing Precision sle
Axial radial bearings YRT100 (100x185x38mm) Rotary Table Bearing Precision slewing turntable bearing A . Axial radial bearings Parameters Brand- TMP Model number- YRT100 Inner ring(mm)- 100 Outer ring(mm)- 185 Width(mm)- 38 Weight(Kg)- 4.1 Materials- GCR15/GCR15SiMn Precision grade- P4/P2 Lubrication type- Grease lubrication Rotating part- Inner ring/Outer ring Load direction- Multi-load Structure- Integrated Inner/Outer Ring,Mounting Hole in Inner/Outer Ring B . Axial radial bearings YRT100 Specification Sheet ModelNumberMain dimensions (mm)Fixing Hole(Inner ing)Fixing Hole(Outer ing)Number ofretainingscrewsExtractionthread holeNumber ofpitchesx Angle dDHH1CD1JJ1d1d2aNumd3QuantityGQuantity YRT1001001853825121601121705.6105.4165.6152M5318×20° C . Axial radial bearings YRT Details Product Features Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy. Series Model No. "YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580 YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580" Applications " -Precision machine tools-precision Turntable, NC rotary table-Rotation part of Machine tools-Inspection instrument,Medical equipment-Indexing plate of other precision machines etc" http://www.aliexpress.com/store/1500617 http://www.aliexpress.com/store/1462552 http://www.tradebearings.com/so21986/ TMP Bearrings,Crossed roller bearing,Thin section bearing,Turntable bearing,Ceramic Ball Bearings,Bearing,Slewing bearing,Robotic bearing,YRT Rotary Table Bearing,Angular Contact Ball Bearing,Thin section ball bearing ,One Way Clutches,One Way Bearings,Drawn Cup Roller Clutches,Overrunning clutches,Indexing clutches,Backstop clutches
