GSM GPRS 3G WCDMA UMTS GPS Analog data logger

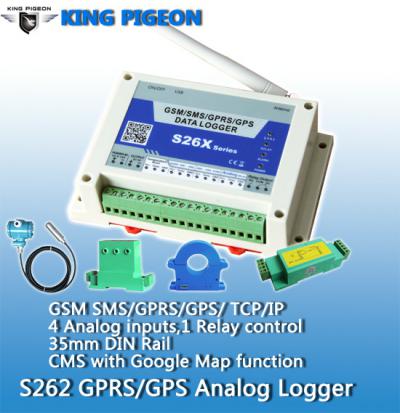

S262W S263W>>>>>GSM/3G UMTS/GPS/SMS Data LoggerThe King Pigeon S262W S263W Data Logger inbuilt industrial GSM and 3G WCDMA module, GPS optional. 4 channel Analog inputs (0-20mA,4-20mA,0-5V) support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.One digital relay output with NC/NO contacts controlled by alarm event,SMS command or Rejected Caller-ID(charge free).With Internal memory, S262W S263W save historical data half a year for inquiry & download by PC software via USB cable or KingCenter CMS-02 Remote Monitoring System via GPRS/UMTS/HSDPA TCP/IP, and tracking the real time GPS location with optional GPS module.Daily report, schedule upload, event upload via GPRS/UMTS/HSDPA to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.S262W/S263W used for field monitoring in worldwide, we offer communication protocol for clients to build their own monitoring software/applications.>>>>>Features:1) GSM and 3G WCDMA band,distribute worldwide applications available2) 4 channel analog input: 0-20mA,4-20mA,0-5V3) SMS command or PC Software programming4) User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)5) 6 numbers for receiving input alert and relay control6) Relay control programmable when alarm thresholds exceed7) Relay control by Caller-ID with free of charge, SMS, GPRS/UMTS(*work with KingCenter CMS-02)8) Recording data on internal memory:Min interval: per 5mins, can save data on unit more than 6 monthsMax interval: per 255mins,can save data on unit more than 10 years9) Historical data download to PC (MS Excel format) via USB10) Historical data query and download remotly by GPRS/UMTS(*work with KingCenter CMS-02)11) Supports 2 Server(Master and Slave) via GPRS/UMTS TCP/IP12) Daily report, schedule upload, event upload programmable13) AC/DC Power status monitoring, AC ON/OFF alert by SMS14) Rechargeable Backup Battery inside(Approx.8hours standby)15) IP67 Environmental protection enclosure(S263W)16) GPS tracking module optional>>>>>Specifications1) Frequency: 2G: GSM900/1800MHz, 3G: WCDMA 900/2100MHz UMTS (default)2G: GSM850/900/1800/1900MHz, 3G: 850/1900MHz UMTS (optional)S262W S263W: the W is an identify letter of S262 S263, all of these models with the same CE certificates.2) Input Channel: 4 Analog, 0-20mA, 4-20mA, 0-5V3) Output: 1 Relay, NC/NO contacts, 7A/125V AC, 5A/250VAC,20A/14VDC4) Power Supply : 9~24VDC 2A5) Power Consumption: 12V input Max.50mA/Average6) SIM Card Supporting: 3V SIM Card7) GSM Antenna: 50 ohm SMA Antenna interface8) Backup Battery: 3.7V/1200mAH9) Relative Humidity: 90%(condensation free)10) Installation: 35mm DIN Rail (S262W) IP67 Enclosure (S263W)11) Connecting Wires: 2.5mm12) Exterior Dimensions: 145*90*41mm (S262W) 180*140*60mm (S263W)13) Net Weight: 250g>>>>>Packing List1) Main unit x12) 100~240VAC/12VDC 2A Power adaptor x13) Antenna x14) GPS Antenna x1 (*for GPS model optional) x15) User Manual & PC Software CD x1Size: 235 x 225 x 65mmGross Weight: 0.75KG>>>Optional accessories:1) -200~500 Temperature transducer with anticorrosion packing2) Fuel/Water level transducer3) Current/Voltage transducer4) Humidity transducer>>>>>PC Programming SoftwareS26x Series PC Programming Tool (Windows XP and Windows 7/8 OS) Functions:a) Authorized users settingb) GPRS/UMTS Parameters settingc) Server IP and Port settingd) Ultra-Low/Low/High/Ultra-High alarm thresholdse) Query current valuesf) Data recording intervalg) Historical data inquiry and export(MS Excel format)h) SMS Daily report intervali) GPRS/UMTS data upload intervalj) Relay action settingk) Relay testl) Date & Time adjustmentm) GPRS/UMTS data transceiving debug>>>>>Typical Project>>>A. Wide Range Temperature Alarm and RecordStorge temperature data(-200~200°C,-70~500°C) on local unit,get alert SMS and phone call when temperature exceed pre-setting value, download the historical data by USB (PC Programming Software) every few months or half a year.Suitble for: Manufacture,Machine factory,Cold room, Madicine center.Steps1: Install S262W/S263W on site2: Setting alert value and record interval time3: Download historical data to PC by USBWhat you needS262W/S263W Standard Kit + SIM Card + TMI500PC Progrramming SoftwareMobile Phone number for receiving alertComputer with WinXP or Win7/8 OS>>>B. Real Time Unman Station MonitoringInstall the S262W/S263W and detectors on the station,record and report real time data to KingCenter CMS-02 via GPRS/UMTS TCP/IP remotely, as well as send alert SMS and making phone call when temperature/current/voltage/humidity/water level data exceed pre-setting value.Suitble for: Server room,Madicine center, Weather station,Agriculture,Pump station,Oil supplier,Water supplier,Fuel pipe,BTS station,etc.Steps1: Install S262W/S263W and detectors2: Setting alert value and record interval time & GPRS/UMTS parameters3. Remote monitoring real timedata4: Download historical dataWhat you needS262W/S263W Standard Kit + SIM Card + WLI100 + Current/Voltage transducer + TMI300PC Progrramming SoftwareMobile Phone number for receiving alertKingCenter CMS-02 SystemDNS/Server IP address and PortComputer with WinXP or Win7/8 OS>>>C. Real Time Fuel Level Monitoring and Record with GPS TrackingInstall the S262W/S263W on vehicle,storge fuel level and temperature data on local unit,get alert SMS and phone call when temperature or fuel level(in case of gasoline theft) exceed pre-setting value, get GPS tracking info on Google Map, Remote monitoring real time values and download historical data anytime anywhere by KingCenter CMS-02 System via GPRS/UMTS TCP/IP.Suitble for: Refrigerated transport,Cold truck,Seafood transport,Logistics Management,Construction vehicle,etc.Steps1: Install S262W/S263W and detectors on vehicles2: Setting alert value and record interval time & GPRS/UMTS parameters3. Remote monitoring real time data and GPS location4: Download historical data remotelyWhat you needS262W/S263W+GPS Standard Kit + SIM Card + TMI500 + WLI100PC Progrramming SoftwareMobile Phone number for receiving alertKingCenter CMS-02 SystemDNS or Server IP address and PortComputer with WinXP or Win7/8 OS
