Lan Cable
Basic informations:

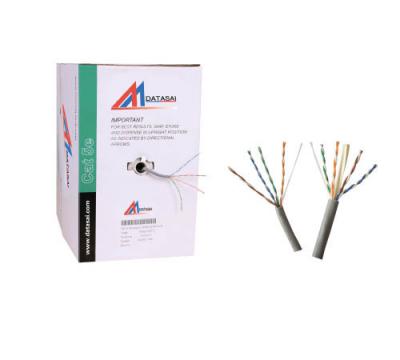

Name: Cat5e UTP LAN cable
Model : DTS-2001A
Material: CCA or Bare Copper
PE: Polyethylene
PVC: Polyvinyl-Chloride
Jacket Color : Yellow , Blue , Gray, Dark gray ,black, white or customized
Size: 100m, 150m,200m,300m,305m,500m,1000m or customized (Standard : 305m/roll)
PS:Cable code& designation:
HS-- LAN Cable
Y--PE insulation
V--PVC jacket
Z--Retardant low smoke zero halogen polyolefine jacket(LSZH)
P--Shield
5--Transmission frequency up to 100 MHz
UTP--Without shield
FTP--Aluminum foil shield
SFTP--Aluminum foil/ copper braid shield
More Details:
All cables meet or exceed the requirement proposed by TIA /EIA 568 B .2 ,ISO/IEC 11801 Category 5e .
Application : Gigabit Ethernet ,155 Mbps ATM .
*Construction: 24AWG 4*2*0.51mm Cu+0.92mmPE+5.2mm PVC
* Color: different color is available
*PE: Polyethylene
*PVC: Polyvinyl-Chloride
twisted pairs are brightly colored and distinguished at a glance .
Performance characterized to 350 MHz .
Ultra smooth jacket makes this cable easy to pull in tight spaces .
UL-Certified .
Foil shield ,drain wire , Use for permanent installations
305 meters , packaged in full boxes.
24 AWG solid bare copper, solid PE insulation,twisted pairs, PVC or LSZH jacket.
