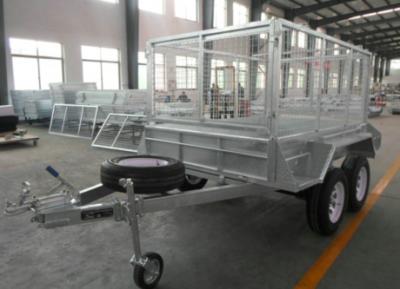

8*5ft Tandem Trailer S05X
Feature and Specifications General Body Size: 2400x1500x300mm (8*5ft), with drawbar 4060x2026x1834mmSurface finishing: Hot dipped galvanizedCoupler: 50mm trailer hitch ball coupler AustraliaMin. ground Clearance: 200mmSteel plate: Checker plate (body and floor, 2.0mm)Trailer Weight: 540kg; GTM: 1999kg; ATM: 1999kgJockey Wheel: 500lbs swing-up heavy-duty 10' rubber jockey wheelSafety Chain: 2000 lbs Australian standard safety chain AS4177-25Cage : 900 mm removableSuspension Axle Specification: 50*50mm solid square axle with mechanical brake, leaf spring *2 (60mm*6 eye to eye)Brake System: Cable mechanical brakeRim Specification: 14*5.5, 5 stubs (PCD 114.3mm), ET0 *5Tire Specification: 185/80 R14C *4Spare Wheel: 185/80 R14C *1Electrical System Electrical Plug: 7 pin round plug/7 pin flat plugTail Light and reflectors: AU/UK/NZ standard with E-mark or the USA standard with DOTLicense plate lamp: Reflector: Loading: 20GP (9 SETS); 40HQ (20 SETS)Options Tool Box: Aluminum tool boxIf you are interested in our company and our products, you can send us the email with your detailed requirements, sales7@xmev.net
