2KW Horizontal Axis Wind Turbine/Domestic Wind Generator for Home and Farm Use w

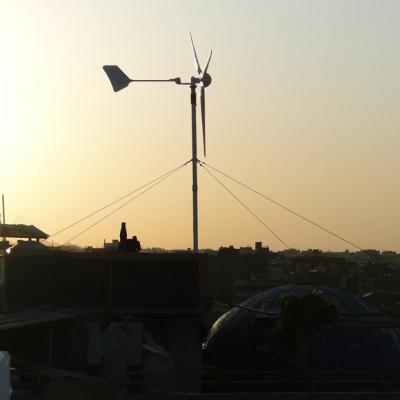

2KW Horizontal Axis Wind Turbine/Domestic Wind Generator
Hummer 2KW Horizontal Wind Turbine Structure
Hummer manufactures and offers advanced 2KW Horizontal Wind Turbine specifically designed for residential
houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are
third party certified and during the past 10 years, 2KW Horizontal Wind Turbine have been exported to 91
countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.
For more information on 2KW Horizontal Wind Turbine such as users manuals, data sheet, PDFdocuments,
certifications please email us sales@allwindturbine.com or call 086 551 65314300
Hummer 2KW Horizontal Wind Turbine curve
H3.8-2KW Horizontal Wind Turbine specifications
Configuration
3 Blades, Horizontal axis, upwind
Rotor Diameter
3.8m
Rated Power
2kW at 9m/s
Maximum Output Power
3.5kW at 14m/s
Battery Bank Voltage
120 Vdc
System Output Voltage
110/220 Vac
Cut-in Wind Vpeed
2.5 m/s
Working Wind Speed
3-25 m/s
Survival Wind Speed
50 m/s
Generator Efficiency
>0.80
Wind Energy Utilizing Ratio
0.45 Cp
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight (kg)
25 kg
Gearbox
None, Direct drive, front generator design
Blade Material
Fiberglass reinforced composite
Over Speed Regulation
Passive furling tail design
Shutting Down Method
Manual & Automatic electromagnetism Braking
How 2KW Horizontal Wind Turbine works
