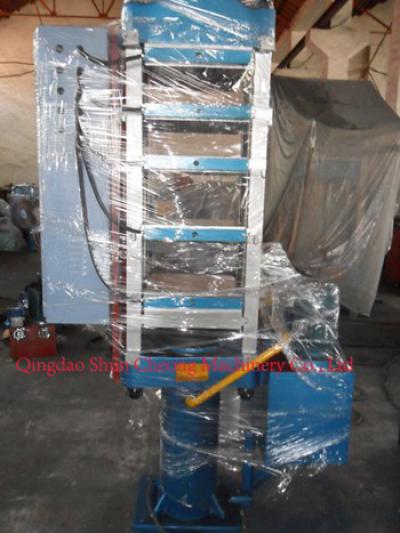

Plate vulcanizing press
Plate vulcanizing press,Plate vulcanizing machine-XLB-600X600 X 4
Plate vulcanizing press is consist of hot plate, up and down platform, plunger, fuel tanks, columns, hydraulic station and electric control system etc.
Hot plate is of dual sizing rolls and processing by 45# steel plates through normalization treatment.
The up and down the platform is of Q235 steel. In order to ensure the production precision using automatic cutting stock, planer processing of welding groove, carbon dioxide gas shielded arc and welding by alloy welding wire, and after that as a whole into the furnace for heat treatment to completely eliminate welding stress, then machining to ensure not deformed.
Cylinder using ZG270-500, plunger is of chilled alloy cast iron, sealing structure is double seals plus the combination of a dust ring structure to ensure the long-term use. The vulcanizing press through a 24-hour pressure test, pressure maintaining to detect the cylinder plunger bearing capacity to ensure that no oil spill, no oil leakage, avoid unnecessary equipment quality troubles for customers.
We can design kinds of non-standard vulcanizing press according to customers specific requirements.
Press Model
XLB-600X600 X 4
Total Pressure (MN)
2.50
Platen Size (mm)
60060060mm
Platen Distance (mm)
150
Working Layers
4
Piston Diameter (mm)
450
Piston Stroke (mm)
500
Hydraulic Working Pressure (Mpa)
16
Hydraulic Cylinder Qty. (set)
1
Unit Pressure (Mpa)
7.2
Closing Mould Speed (mm/s)
30
Heating Method
Electric
Low Pressure Pump Motor Power (KW)
3
High Pressure Pump Motor Power (KW)
7.5
