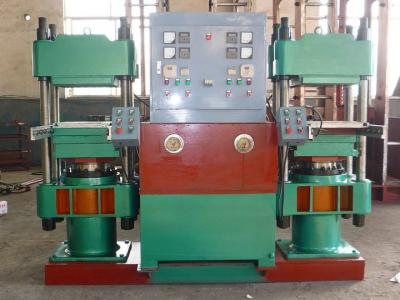

Duplex semi-automatic rubber vulcanizing press
Duplex semi-automatic rubber vulcanizing press is made of two host vulcanizing machine, one hydraulic station and the whole base, each vulcanizing machine composed of hot plate, up and down the platform, hydraulic cylinders, piston and other components.
The hot plate is made of Q235; eliminate internal stress after casting and annealing, it can according to customers requirements using dual sizing rolls and processing by 35# steel plates through normalization treatment.
The material of the upper and lower platforms for Q235, eliminate internal stress after casting smoldering Q235 steel welding production according to customer requirements, as a whole into the furnace for heat treatment after welding, the complete elimination of welding stress, then machining to ensure that the use of the process does not distort .
The material of the hydraulic cylinder is Q235 and the piston is HT200, it can also design according to customers requirements using Q235 steel welding, after welding the whole into the furnace for heat treatment, completely eliminate welding stress, and then machined to ensure that not deformed.
The electric control system can be full-automatic and semi-automatic type.
The vulcanizing press through a 24-hour pressure test, pressure maintaining to detect the cylinder plunger bearing capacity to ensure that no oil spill, no oil leakage, avoid unnecessary equipment quality troubles for customers.
We can design kinds of non-standard vulcanizing press according to customers specific requirements.
XLB-650X650
Total pressure(Ton)
300
Plate Size (mm)
650x650x70
Daylight (mm)
350--500
Piston Stroke (mm)
350
Close Mould Speed (mm/s)
35
Open Mould Speed (mm/s)
35
Hydraulic System Pressure (Mpa)
19
Cylinder Diameter (mm)
450
Motor Power (KW)
7.5x2
EVA Foaming Vulcanizing Press,EVA Foaming Vulcanizing Machine
The machine applies to vulcanizing various kinds of rubber and plastic model products as well as non-model products.
Fiber Separator&Rubber Powder Collector,Fiber Separator&Rubber Powder Collector&Cooler
Fiber separator working principle is based waste tire recycling process fine crumb mix with nyl
XJFS-280 Fine Rubber Powder Pulverizing Machine
1. Use
Each unit has three bunchers, this device is water-cooled system, and product for 30-120 mesh fineness (can be adjusted.).
2. Structure an
Fine rubber powder production line is how fine powder, collection, distribution cabinet, centrifugal screen, screw conveyor, aniseed box, a high degree of automation, only 1-2 workers to operate in th
Four Roll Rubber Calender,Four Roll Rubber Calender: The Rubber Calender Machine is mostly used in oppression of rubber products and textile(like cotton, rayon, nylon etc.)
Introduction:
1. The Ru
Frame plate vulcanizing press is composed of hot plates, plates, up and down platforms, piston stroke, hydro-cylinder, hydraulic station and electrical control system. It can be equipped with push-pul
Hardened Reducer Type Mixing Mill, This rubber mixing machine ensures the perfect and uniform blending of natural and synthetic rubber with other raw materials. The machine mixes all the raw materials
