10KW Home Wind Power

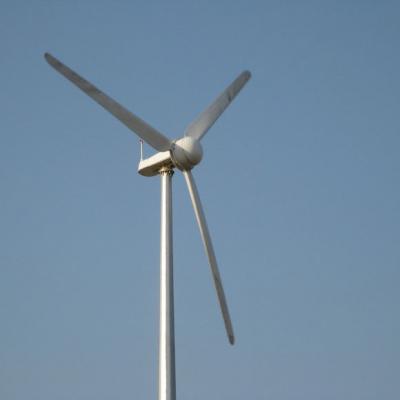

Hummer 10KW Home Wind Power
10KW Home Wind Power Structure
Hummer manufactures and offers advanced 10KW Home Wind Power specifically designed for residential
houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are
third party certified and during the past 10 years, Hummer 10KW Home Wind Power have been exported
to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain
etc. For more information on 10KW Home Wind Power such as users manuals, data sheet, PDF
documents, certifications please email us sales@allwindturbine.com or call 086 551 65314300
10KW Home Wind Power curve
H8.0-10KW Wind Turbine Generator specifications
Configuration
3 Blades, Horizontal axis, upwind
Rotor Diameter
8.0m
Rated Power
10KW at 10m/s
Maximum Output Power
15KW at 14.3m/s
Battery Bank Voltage
240 Vdc
System Output Voltage
110/220/380 Vac
Cut-in Wind Vpeed
2.5 m/s
Working Wind Speed
3-25 m/s
Survival Wind Speed
50 m/s
Generator Efficiency
>0.85
Wind Energy Utilizing Ratio
0.40 Cp
Energy Monitoring & User Control
Siemens PLC controller with touch screen
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight (kg)
287 kg
Gearbox
None, Direct drive, front generator design
Blade Material
Fiberglass reinforced composite
Over Speed Regulation
Auto Yawing
Shutting Down Method
Manual & Automatic electromagnetism Braking & Hydraulic Braking
How 10KW Home Wind Power works
