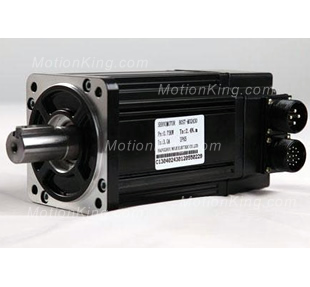

AS80 AC Servo Motors


Electrical Specifications     AS80-30-013E25AS80-30-024E25AS80-20-035E25AS80-30-035E25AS80-25-040E25AS80-30-040E25Rated Power (KW)0.40.750.731.01.01.2Rated Voltage (V)220220220220220220Rated Current (A) 23.03.03.04.45.2Rated Speed (RPM) 300030002000300025003000Rated Torque (N.m) 1.272.393.53.54.04.0Peak Torque (N.m) 3.87.110.510.51212Peak Current (A) 69.09.013.513.216Voltage Constant (V/1000r/min)404871465646Torque Coefficient (N.m/A)0.640.81.170.780.90.77Rotor Inertia (Kg.m2)1.05x10-41.82x10-42.63x10-42.63x10-42.97x10-42.97x10-4Resistance (Ω)4.442.883.651.561.831.33Inductance (mH)7.936.48.83.764.723.27Electrical Time Constant (ms)1.662.222.42.42.582.46Weight (Kg)1.782.863.73.73.83.8Encoder Resolution (PPR)250025002500250025002500Body Length (L, mm) 123150178190

Add to BasketAdd to Basket Web addressWeb address
