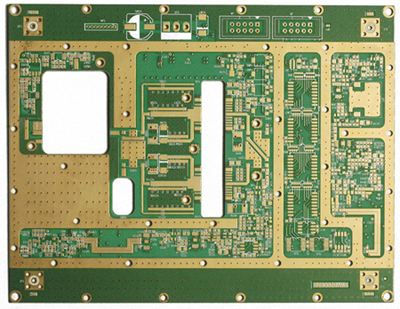

Multilayer PCB Lamotek
1, 1-22 layers2, Board finished thickness: 0.21mm-7.0mm 3, Material: FR-4, CEM-1, CEM-3, High TG, FR4 halogen Free, Rogers 4, Max. Finished board size: 23*25(580*900mm) 5, Min. Drilled hole size: 3mil(0.075mm) 6, Min. Line width: 3mil(0.075mm) Min. Line spacing: 3mil(0.075mm) 7, Surface finish/treatment: HASL/HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating. 8, Copper thickness: 0.5-7.0 oz 9, Solder mask color: Green/yellow/black/white/red/blue 10, Copper thickness in hole: >25.0 um(>1mil) 11, Inner packing: Vacuum packing/Plastic bag Outer packing: Standard carton packing 12, Shape tolerance: ± 0.13 Hole tolerance: PTH: ± 0.076 NPTH: ± 0.05 13, Special requirements: Buried and blind vias+Controlled impedance+BGA 14, Profilling: Punching. Routing. V-CUT. Beveling 15, Provides OEM Services to all sorts of printed circuit board assembly as we as electronic encased products. Product/Service: PCB, PCBA, printed circuit board, PCB assemble, SMT, FPCB, FPC, Rigid and Flex board, Rigid Printed circuit board.
