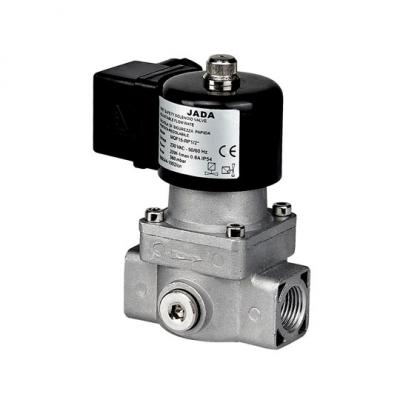

MQF-15 Fuel Gas Solenoid Valve
MQF series Solenoid Operated Valve (directly operated type)Category: MQF Fuel Gas Solenoid ValveOur company has become a recognized leader in the manufacture of Solenoid Operated Valve. Through technology innovation of Solenoid Operated Valve, we aim to fully satisfy our customers' needs. ModelDrift diameter(mm)TechnologyparametersVoltage(v)Overall imensionConnectiondimensionValve bodymateriallengthheightMQF-1010 PressureScope:0~360mbarWorkingmedia:water gas/coal gas/natural gas/oil gas/liquefiedgas/mashgasmediatemperature:0~60℃ AC415380220110362412DC22036241275122Internal thread G 3/8" AluminiumalloyMQF-151575122Internal threadG 1/2"MQF-202094170Internal threadG 3/4"MQF-252594170Internal threadG1"MQF-3232152225Internal threadG11/4"MQF-4040152235Internal threadG 11/2"MQF-5050155235Internal threadG 2"MQF-6565 0~200mbar305355Flange 4-Φ18×Φ145MQF-8080305355Flange 8-Φ18×Φ160 Product introduction:(1)The MQF type valve is a fast opening solenoid valve that is normally closed.When not energized the spring works on the seat keeping the gas passage closed. When the coil is powered the valve opens. When power is cut off the valve rapidly shuts. (2)This type of device is suitable for gas and air blocking and adjusting controls in atmospheric burners or fan -assisted burners, in industrial ovens and in all gas equipments which use gas solenoid valves(qualified for continuous service-100%ED). Technical specification:Connections:Gas threaded ISO7/1 from Rp3/8''to Rp 2''flanged ISO 7005-PN 16 from DN40 to DN150Voltage rating:230VAC,110VAC,24VAC/DC,12VAC/DCVoltage tolerance:reduce 15% or plus 10%Enviroment temperature:subzero 15℃ or 60℃Working pressure:200-360mbar MaxClosing time:
