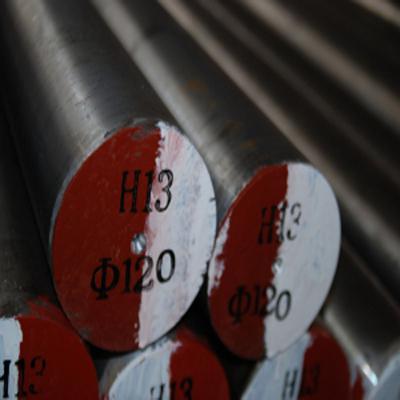

H13/1.2344 hot work tool steel (горячей стали вок H13)

Zoom in

Send Request

about this service

Producer information

Company:
Dongguan Yagang Metal Materials Co.,Ltd

Address:
No.35 South Xingfa Road, Wusha Community, Changan Town

Phone:
+86-769-81502782

H13/1.2344 hot work tool steel

H13/1.2344/SKD61 HOT WORK TOOL STEELSpecificationsChemical Composition ELEMENTMIN.MAX.CARBON0.370.42MANGANESE0.200.50PHOSPHORUS00.025SULFUR00.005SILICON0.801.20CHROMIUM5.005.50VANADIUM0.801.20MOLYBDENUM1.201.75 HardnessAnnealed hardness, shall not exceed 235 Brinell (BHN). A steel specimen having a thickness no greater than one inch shall exhibit a minimum hardness of 50 HRC, when air cooled, after heating for 30 minutes at 1850°F in a protective atmosphere, or when using a non-protective atmosphere, insure the sample has appropriate oversize allowance. Ultrasonic QualitySEP1921-84 GR.3 CLASS D/D Advantagea. Tooling materials to be used in the construction of a die casting die for casting Aluminum, Magnesium and ZA alloys, should be high quality tool steel such as Premium Quality H-13 especially for part designs with critical features or if high production runs are being contemplated. b. Longer die life.

Add to Basket

Web address

Other goods of this manufacturer :

H21 Hot work steel
	H21 Hot work steel 1)Delivery condition :Hot rolled or forging ,ESRor EAF material ,black or machined surface 2)Comparable steel : 3Cr2W8V (GB), H21 (AISI) ,1.2581 (DIN ), SKD5(JIS )

NAK80 steel round bar
	Forged Steel NAK80 1Ni3Mn2CuAlMo / NAK80 is low allloy separate out induration steel . it has good machanical property after the heat-treatment . 1Ni3Mn2CuAlMo / NAK80 is high quenchi

O1/1.2510 oil tool steel
	AISI O1(DIN 1.2510, GB 9CrWMn,JIS SKS3) OIL TOOL STEEL 1. Chemical composition: C=0.85~0.95, Si=0.20~0.40, Mn=1.00~1.30, Cr=0.40~0.60, W=0.40~0.60, V=0.10~0.20.2. Delivery condition: EAF or ESR,

P20+Ni Mould steel
	1. Grade: P20+Ni/718/1.2738 steel block 2. Specification: T200~800W400~1000L1500~5800mm 3. Delivery condition: Forging, machined surface 4. Chemical composition(for refere

P20/1.2311 steel
	P20 Plastic Steel Plate 1) Delivery condition:Hot rolled&forging,black surface,Hardened&Tempering,Hardness:28-34HRC,Annealing,hardenss:HBS≤235. 3).Specification:Thickness:20/25/30/35...40

S136 forging steel
	1.2083/S136/4Cr13 FORGING STEEL 1. Size: Round Bar: Dia6~800mm Flat: T12~500W205~1000mmL2000~5800mm 2. Chemical composition(for reference): C Si Mn

1.1191 C45 S50C plated steel
	1.1191/S45C/CK45/C45 PLATED STEEL: Grade:Carbon steel plate/flat bar(45#/1045/1.1191/S45C) 1).Delivery condition: Hot rolled & forging; Black &Machined;Annealing;Hardness:HBS=140-210 3).

1.2311 forging steel
	STEEL GRADE AISI P20/DIN1.2311/3Cr2Mo/PDS-3/618 MOULD STEEL 1. Specification: Steel plate or flat bar:T20~700W210~2200L2000~5800mm Dia: 80~800mm Length:2000-5800mm or as required 3. S

1.2367 hot work tool steel round steel bar
	1.2367 HOT WORK TOOL STEEL ROUND STEEL BAR 1. Features: good macro and microstructure with lowest levels of segregation very good polishability 2. Standard & Grade: 1.2367/ X38CrMoV5-3/H
