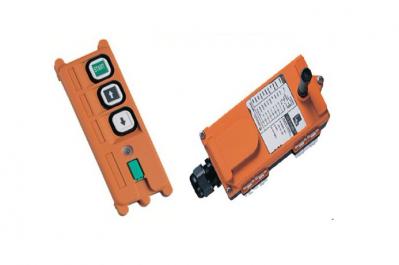

F21-2D radio remote control set
Name: F21-2D radio remote control set (transmitter and receiver)Application: single hook hoist, single speed cucurbit, double speed cucurbit crane, garbage truck, electro motion door and electromotor. The feature of transmitter:4 buttons: 2 double speed button +1 urgent stop button+ 1 “start” button.Size: L*W*H（ 130*45*22）mmWeight：120g （exclude battery）Battery： 2 pcs 1.5V AA Alkaline.Battery safety protect: it auto power off when power is not enough.Safety key is used to avoid usage by unauthorized. The feature of receiver:Size: L*W*H（ 185*85*85）mm.Weight：550g （include 1.5meter cable）Input voltage: AC 24/48/110/220/380V, DC 12/24/48V. General specification:Frequency: 310.3-331.2 MHzFrequency control: quartz crystal Output terminal: full sealed relay 20A/250V (passive switch signal).Structure: glass fiberReceiving high frequency: sensitivity ＞-110dBmTransmitting high frequency: output power＜4dBmReaction rate: 0.065s.Protection: IP65Operation distance: 100 metersConvenient “Windows” port to operate and copy function.UP/Down keys can be set to mutual rejection.The key” Start” function can set to start, skip or common by computer.Surpass 4.3 billion Identity code memory.Temperature -30 to +80 degrees.Low energy: 2 pcs AA battery using one month.Special anti-vibration design for moving equipment.
