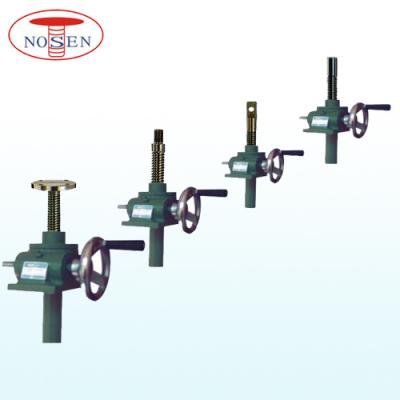

Manually Operate Screw Jack
Manually Operate Screw Jack detailed informations:A hand wheel is a convenient solution for manual operated a screw jack or screw jack systems. When using screw jacks in intermittent positioning applications. Hand wheels are available in a range of diameters from 5 to 12 inches and customized follow clients' need.Hand Wheels do not include a brake. Hand wheels are not recommended for use with ball screw jacks. When using hand wheel with a screw jack that can backdrive an additional locking mechanism may be required to prevent "creep".For precise position display, a range of digital counters are available for use with screw jacks. These digital counters measure the rotation of the input shaft and display corresponding position in a counter window. The display value per input shaft revolution is variable and is achieved through a series of gear reductions configured to accommodate different jack ratios, lifting screw pitch and travel distances.Human Force Calculation Formulas:HF=(G*P)/(R1*R2)HF:human force (kgs)G :working load (kgs)P :screw pitch (mm)R1:gear ratio R2:hand wheel radiusExample, working load 50 kgs,the fast speed,manual operated.Check specification table, 50 kgs with manual operated, use the smallest model RN-0.5T(pitch=5mm) enough. Fast speed1/5.Usually,RN-0.5T jack with 5"(125) diameter hand wheel. How much about human force?HF=(50*5)/(5*62.5)=0.8 kgs.Every model has three speed ratios.RN-0.5T,RN-1T,RN-2T,RN-3T,RN-5T,RN-10T and RN-15TFast speed: 1 turn 1 mm travelsMid speed: 1 turn 0.5 mm travelsLow speed: 1 turn 0.25 mm travelsThe larger models screw jacks are not suitable for manual operated.Did Projects:Sluice gate in hydroelectric dam,Powered straighteners,Precision levelers,Solar tracking jack systems,Large satellite dish antenna movements,Slitting line,Roll forming machines,Tunnel freezer systems,Oven lifters,Vacuum furnace lid lifters,Conveyor lifts,Air dampers,Theatre stages,Glass charging machines,Steel manufacturing mills,Cold/Hot rolling mills,All tube mills.
Motor Drive Screw Jack Detailed Informations:For easy installation, Every type worm gear screw jack can be directly connected with electric motors by motor flange. Motor mounts allow direct coupling o
Motorized Screw Jack Worm Gear Detailed Informations:For easy installation, Every type worm gear screw jack can be directly connected with electric motors by motor flange. Motor mounts allow direct co
Quality Machine Screw Jack Features:1.Model:RN-0.5T,RN-1T,RN-2T,RN-3T,RN-5T,RN-10T,RN-15T,RN-20T,RN-30T,RN-40T,RN-50T,RN-100T2.Function: precisely controlled lifting,lowering,pushing,pulling and
Quality Screw Jack Features:1.Model:RN-0.5T,RN-1T,RN-2T,RN-3T,RN-5T,RN-10T,RN-15T,RN-20T,RN-30T,RN-40T,RN-50T,RN-100T2.Function: precisely controlled lifting,lowering,pushing,pulling and rolling
Q: What is rotating screw jack? A: A lifting screw keyed to the worm gear as a single unit, forcing the lifting screw to rotate, but not translate. A traveling nut, attached to the load, is driven by
Screw jack lift system configurations screw jacks, bevel gearboxes, flex linking shafts, couplins, guides, gear reducer etc. Considering all the factors, usually, NOSEN supplies screw jacks and bevel
