LED Camera

Product Name: LED CameraModel Number: BSH-4942Place of Origin: ChinaModel BSH-4942:1. Pickup device: 1/3" Sony CCD2. Picture elements: PAL 512 x 582; NTSC 512 x 4923. Sensing area: 4.9mm x 3.7mm4. System of signal: PAL/NTSC5. Horizontal resolution: 420 TV lines (520TV lines optional)6. Sync signal: INT sync7. AGC control: auto8. Scanning system: 2:1 interface9. (H) frequency: PAL: 15.625kHz, NTSC: 15.734kHz; (V) frequency: PAL: 50Hz, NTSC:59.94Hz10. Lens: 6/8/12/16mm (optional)11. White balance: auto tracking white balance12. Mirror control: normal/reverse13. Electronic shutter: PAL 1/50~1/100,000 (second); NTSC 1/60~1/100,000 (second)14. S/N ratio: more than 48dB15. Min. illumination: 0 lux @F1.216. Gamma: 0.4517. Video output: 1.0Vp-p, 75 ohms18. Power supply: DC 12V19. Operating current: less than 800mA20. Infrared wavelength: 49pcs, 850nm21. Infrared lamps distance: 60m22. Dimensions: 150 x 110 x 110mmModel BSH-4948:1. Pickup device: 1/3" Sony super HAD CCD2. Picture elements: PAL: 752 x 582, NTSC: 768 x 4923. Sensing area: 4.9mm x 3.7mm4. System of signal: PAL/NTSC5. Horizontal resolution: 420 TV lines (520TV lines optional)6. Sync signal: INT sync7. AGC control: auto8. Scanning system: 2:1 interface9. (H) frequency: PAL: 15.625kHz, NTSC: 15.734kHz; (V) frequency: PAL: 50Hz, NTSC:59.94Hz10. Lens: 6/8/12/16mm (optional)11. White balance: auto tracking white balance12. Mirror control: normal/reverse13. Electronic shutter: PAL: 1/50~1/100,000 (second); NTSC: 1/60~1/100,000 (second)14. S/N ratio: more than 48dB15. Min. illumination: 0lux @F1.216. Gamma: 0.4517. Video output: 1.0Vp-p, 75 ohms18. Power supply: DC 12V19. Operating current: less than 800mA20. Infrared wavelength: 49pcs, 850nm21. Infrared lamps distance: 60m22. Dimensions: 150 x 110 x 110mm

Add to Basket

Web address

Other goods of this manufacturer :

LED Waterproof Camera
	Specifications:Model no.: BSH-36421) Image sensor: 1/3" Sony CCD2) Picture elements: PAL: 500 x 582, NTSC: 510 x 4923) Sync system: internal4) Horizontal resolution: 420TV lines5) Lens: 6mm / 8mm / 12

LED Waterproof Camera
	Product Name: LED Waterproof CameraModel Number: BSH-6042Place of Origin: ChinaSpecifications:Model no.: BSH-60421) Image sensor: 1/3" Sony CCD2) Picture elements: PAL: 500 x 582, NTSC: 510 x 4923) Sy

Lipstick Camera
	SpecificationsModel No.: BSM-50521) Image sensor: 1 /3 " Sony Super H.Q.1 CCD2) Picture elements: PAL: 752 x 582, NTSC: 768 x 4943) Sync system: internal4) Horizontal resolution: 520 TV lines5) Lens:

Lipstick Camera
	Specifications:Model no.: BSM-5042P1) Image sensor: 1 /3" Sony CCD2) Picture elements: PAL: 500 x 582; NTSC: 510 x 4923) Sync system: internal4) Horizontal resolution: 420 TV lines5) Lens: pinhole 3.6

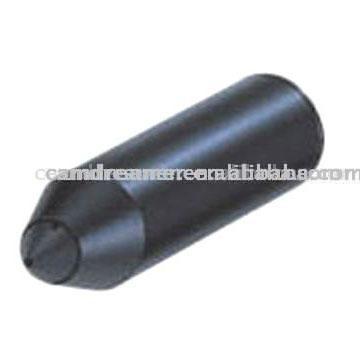

Lipstick Shaped Camera
	Product Name: Lipstick Shaped CameraModel Number: BSM-5042PPlace of Origin: ChinaSpecifications:Model No.: BSM-5042P1) Image sensor: 1 /3" Sony CCD2) Picture elements: PAL: 500 x 582; NTSC: 510 x 4923

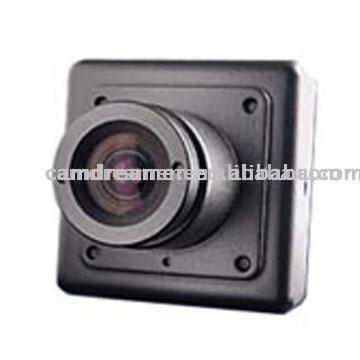

Mini CCD Camera
	Specifications:Model no.: BSM-6042CP1) Image sensor: 1/3" Sony CCD2) Picture elements: PAL: 500 x 582, NTSC: 510 x 4923) Sync system: internal4) Horizontal resolution: 420TV lines5) Lens: 3.6mm/6

Mini CCD Camera
	Specifications:Model no.: BSM-6042X1) Image sensor: 1 /3" Sony CCD2) Picture elements: PAL: 500 x 582, NTSC: 510 x 4923) Sync system: internal4) Horizontal resolution: 420TV lines5) Lens: 3.6mm/6mm/8m

Mini CCD Camera
	Product Name: Mini CCD CameraModel Number: BSM-6042CPPlace of Origin: ChinaSpecifications:Model no.: BSM-6042CP1) Image sensor: 1/3" Sony CCD2) Picture elements: PAL: 500 x 582; NTSC: 510 x 4923)

Mini CCD Camera
	Product Name: Mini CCD CameraModel Number: BSM-6042XPlace of Origin: ChinaSpecifications:Model No.: BSM-6042X1) Image sensor: 1 /3" Sony CCD2) Picture elements: PAL: 500 x 582; NTSC: 510 x 4923) Sync
