Pan / Tilt Dome Camera
Features:1) Image device: 1/3 SONY super HAD CCD2) Horizontal resolution: 420 TV lines3) TV system: PAL NTSC4) PAL (H x V): 500 x 582 PAL (H: 15.625KHz, V: 50Hz)5) NTSC (H x V): 510 x 492 NTSC (H: 15.734KHz, V: 60Hz)6) Minimum illumination: 0.8lux (F: 1.2)7) Electronic shutter: PAL = 1/50 - 1/100,000 seconds;NTSC = 1/60 - 1/100,000 seconds8) Video output: 1 Vp-p, 75 ohms, negative9) S/N ratio: >48dB (AGC off)10) Lens mount: Board Lens (6mm, 8mm, 12mm)11) Gamma: 0.4512) BLC: on13) Power: 12V DC14) Dimensions (W x H): 108 x 77mm15) Weight: 225g16) Operating temperature: -10 to 50°C (humidity: 95% max.)17) Storage temperature: -20 to 60°C (humidity: 95% max.)
 Add to Basket
 Web address
|
|
|
Other goods of this manufacturer : |
|
|
|
|
Pan/Tilt Dome Camera (K Series)
|
|
Specifications:Model no.: TT-KSO32C1) Image sensor: 1/3" Sony CCD2) Pixels: PAL=500 (H) x 582 (V); NTSC=510 (H) x 492 (V)3) TV system: PAL/NTSC4) Sensitive area: 4.8 x 3.6mm5) Sync system: intern
|
| |
|
Pan/Tilt Dome Camera with Decoder Board
|
|
|
Specifications:Model no.: TT-KSO32C1) Image sensor: 1/3" Sony CCD2) Pixels: PAL=500 (H) x 582 (V); NTSC=510 (H) x 492 (V)3) TV system: PAL/NTSC4) Sensitive area: 4.8 x 3.6mm5) Sync system: intern
|
| |
|
PC Based DVR Board (16-Channel)
|
|
Specifications:1) Input type: BNC x 42) Video input(s): 1, 4, 6, 9, 10, 13, 16 division3) Audio input(s): 1-channel4) Recording rate: 120fps (NTSC), 100fps (PAL)5) Display rate: 120fps (NTSC), 100fps
|
|
|
|

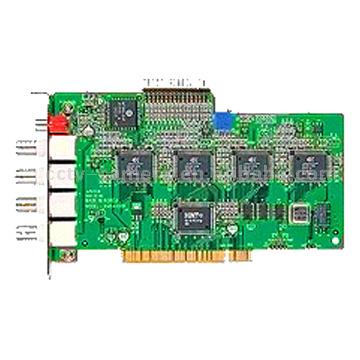

PC Based DVR Card (16-Channel)
|
|
|
Product Name: PC Based DVR Card (16-Channel)Model Number: TT-416Place of Origin: Shenzhen ChinaSpecifications:1) Input type: BNC x 42) Video input(s): 1, 4, 6, 9, 10, 13, 16 division3) Audio input(s):
|
| |
|
Pc Based Surveillance Card
|
|
Specifications:1) Input type: BNC2) Video input: 1 - 4 cams3) Audio input: 1-channel4) Recording rate: 30fps (NTSC), 25fps (PAL)5) File format: AVI6) Display rate: 30fps (NTSC), 25fps (PAL)7) Video re
|
| |
|
Pc Based Video Capture Board
|
|
|
Specifications:1) Input type: BNC2) Video input: 1 - 4 cams3) Audio input: 1-channel4) Recording rate: 30fps (NTSC), 25fps (PAL)5) File format: AVI6) Display rate: 30fps (NTSC), 25fps (PAL)7) Video re
|
|
|
|
Pc Based Video Card
|
|
SpecificationsInput Type: 8BNC cable*1Video Input(s): 8 channel, Screen Division: 1/4/9/16Audio Input(s): 1 channel, Audio input via MicrophoneRecording Rate: 240fps (NTSC), 200fps (PAL).Display Rate:
|
| |
|
Pin Hole Cameras
|
|
Specifications:1) Image sensor: B/W 1/4" OV CMOS2) Resolution: 350TVL3) Minimum illumination:a) 0.5 luxb) 0 lux (with infrared lamp on)
|
| |
|
|
|
