4 channel video capture cardSpecifications:1) Input type: 4BNC x 12) Video input(s): 4-channel, screen division: 1/4/9/163) Audio input(s): 1-channel, audio input via microphone4) Recording rate: 120fps (NTSC), 100fps (PAL)5) Display rate: 120fps (NTSC), 100fps (PAL)6) Compression format: MPEG4 /H.264 (optional)7) Multiple cards: 1 ~ 4 cards per PC8) Data size: 30-150MB/h/ch9) Resolution:a) Display: 640 x 480, 352 x 288, 320 x 240b) Record: 640 x 480, 352 x 288, 320 x 24010) Various recording modes:a) Dynamic streaming or static streaming recording (optional)b) Motion detection recordingc) Schedule recordingd) Alert recordinge) Remote recording and remote backupf) Appointed hard driver for backup available11) PTZ control:a) Supports PELCO D, PELCO P, RM110 and other protocolsb) OEM service provided for PTZ control protocols, setting presetting spot,controlling and remote controlling PTZ lens12) Alarm in/out:a) Freely setup the motion detection areab) Sensitivity is adjustable13) Networking:a) TCP/UDP protocol, IE viewing availableb) Connect to 256KB - 2MB internet bandwidth can reach the effect of LANwithout occupying CPU resource14) Backup: USB and remote access backup15) Playback:a) Multi-channels playback simultaneouslyb) Digital zoom, capture and print or backup the picture of the video filesc) Watermark of time and text managementd) Playback with its own player16) Authorization:a) Multi-users authorization managementb) User authorization setup17) Multi-language support: English, Traditional Chinese, Simplified Chinese18) Remark: This card can work with TT-S808R together to make more channels19) System requirements:a) OS supported: Windows 2000 / Windows XPb) CPU: Pentium 4, over CPU 2.0GBc) Motherboard: Intel chipset (recommended)d) RAM: 256MB (minimum)e) HDD: over 80GB (recommended)f) VGA: AGP 64MB
Specifications:Model no.: TT-VASO48C1) Image sensor: color 1/3 Sony super HAD CCD2) Video resolution: 480TVL3) Minimum illumination: 0.2lux4) Pixels: PAL=795 (H) x 596 (V); NTSC=811 (H) x 508 (V)5) Sy
Features:1) Image device: 1/3 SONY super HAD CCD2) Horizontal resolution: 420 TV lines3) TV system: PAL NTSC4) PAL (H x V): 500 x 582 PAL (H: 15.625KHz, V: 50Hz)5) NTSC (H x V): 510 x 492 NTSC (H: 15.

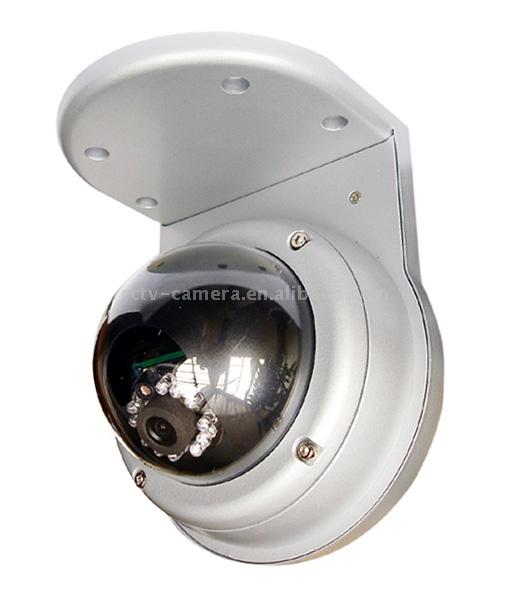

Product Name: Wall-Mount Vandal-Proof Indoor Dome CameraModel Number: VA SeriesPlace of Origin: ChinaIncluding 3.6mm lens, 12 IR LEDs, IR distance: 10-15m, Vandal proof indoor use onlySpecifications:M

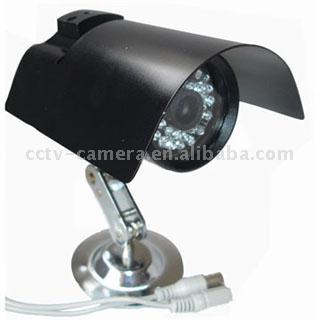

Features:1) Day / night color CCD camera2) With 18pcs of IR LEDs3) IR distance: about 20 - 25m4) Metal and strengthen glass caseSpecifications:1) Model no.: TT-RSO32C2) Image sensor: 1/3" CCD3) P
Characteristics.Embedded operating system.Network Compressed Format : MPEG-4.Ethernet PCI,10Base-T.Network bandwidth adjust function 100~1000Kbps.Image and voice surveillance function.Image and voice
Specifications:Model TT-25SO48CM:1) Image sensor: 1/3" Sony DSP super HAD CCD2) Pixels: PAL=795 (H) x 596 (V); NTSC=811 (H) x 508 (V)3) TV system: PAL/NTSC4) Sensitive area: 4.8 x 3.6mm5) Sync sy
Features:1. Mirror effect --- people can not see the lens direction---- better covert monitoring.2. 480TVL/420TVL Sony DSP inside--- good image3. Day/Night version brings color video on day time, and
Specifications:Model TT-25SO48CM:1) Image sensor: 1/3" Sony DSP super HAD CCD2) Pixels: PAL=795 (H) x 596 (V); NTSC=811 (H) x 508 (V)3) TV system: PAL/NTSC4) Sensitive area: 4.8 x 3.6mm5) Sync sy
