D/N Camera with Bracket (D / N камера с кронштейном)

Zoom in

Producer information

Company:
TT Int'l HK Tech Limited

Address:
West A401, Huajian Industrial Building, Baogang Road, Luohu District, Shenzhen, Guangdong Province. P.R.China

Phone:
+86-755-82425337 +82408925

D/N Camera with Bracket

Features:1) Day / Night color CCD camera2) With 18pcs of IR LEDs3) IR distance: about 20 - 25m4) Metal and strengthen glass caseSpecifications:1) Model no.: TT-RSO32C2) Image sensor: 1/3" CCD3) Pixels:a) PAL: 500 (H) x 582 (V)b) NTSC: 512 (H) x 492 (V)4) TV system: PAL/NTSC5) Sync system: internal6) Resolution: 420TVL7) Min. illumination: 0.8 lux (F1.2); 0 lux (IR on)8) S/N: >48dB (AGC off)9) Electronic shutter: PAL=1/50-1/100,000sec10) Video output: 1Vp-p, 75Ω11) Power supply: DC 12V, 250mA12) Lens: board lens 3.6mm / 6mm / 8mm / 12mm optional13) IR distance: 15 - 20m14) Light below 10 lux, CDS automatically open15) IR-LED: 18pcs16) Dimensions (D x L x H): 66 x 85 x 140mm17) Weight: approx. 573g (net); 845g (including packing)18) Operation temp: -10 ~ 50°C19) Storage temp.: -20 ~ 60°CModel no.: TT-RSH32C1) Image sensor: 1/3" Sharp CCD2) Pixels:a) PAL: 500 (H) x 582 (V)b) NTSC: 512 (H) x 482 (V)3) TV system: PAL/NTSC4) Sensitive area: 4.8 x 3.6mm5) Sync system: internal6) Resolution: 380TVL7) Min. illumination: 1.0 lux (F1.2); 0 lux (IR on)8) S/N: >48dB (AGC off)9) Electronic shutter:a) PAL: 1/50-1/100,000secb) NTSC: 1/60-1/100,000sec10) Video output: 1Vp-p, 75Ω11) Power supply: DC 12V, 250mA12) Lens: board lens 3.6mm / 6mm / 8mm / 12mm optional13) IR distance: 15 - 20m14) Light below 10 lux, CDS automatically open15) IR-LED: 18pcs16) Dimensions (D x L x H): 66 x 85 x 140mm17) Weight: approx. 573g (net); 845g (including packing)18) Operation temp: -10 ~ 50°C19) Storage temp.: -20 ~ 60°CModel no.: TT-RSH42C1) Image sensor: 1/4" Sharp2) Pixels:a) PAL: 500 (H) x 582 (V)b) NTSC: 512 (H) x 482 (V)3) TV system: PAL/NTSC4) Sync system: internal5) Resolution: 420TVL6) Min. illumination: 1.0 lux (F1.2); 0 lux (IR on)7) S/N: >48dB (AGC off)8) Electronic shutter:a) PAL: 1/50-1/100,000sec]b) NTSC: 1/60-1/100,000sec9) Video output: 1Vp-p, 75Ω10) Power supply: DC 12V, 250mA11) Lens: 3.6mm / 6mm / 8mm / 12mm optional12) Lens mount: board lens13) IR distance: 15 - 20m14) Light below 10 lux, CDS automatically open15) IR-LED: 18pcs16) Dimensions (D x L x H): 66 x 85 x 140mm17) Weight: approx. 573g (net); 845g (including packing)18) Operation temp: -10 ~ 50°C19) Storage temp.: -20 ~ 60°CModel no.: TT-RS41421) Image sensor: 1/4" Sony super HAD CCD2) Horizontal resolution: 420TVL3) Signal system: PAL/NTSCa) PAL (H x V): 500 x 582 (H:15.625kHz, V:50Hz)b) NTSC (H x V): 510 x 492 (H:15.734kHz, V:60Hz)4) Electronic shutter:a) PAL: 1/50 - 1/100,000secb) NTSC: 1/60 - 1/100,000sec5) Video Output: 1Vp-p, 75Ω6) S/N ratio: >48dB (auto gain off)7) LED lamps: built-in 18 high quality LEDs8) Infrared wavelength: 850mm9) Infrared effective distance: 18m10) Infrared angle: 9pcs=30°, 9pcs=60°11) Illumination: LED auto on at 10 lux12) Min. illumination: 0.8 lux (F1.2)13) Min. illumination with LED on: 0 lux14) Built-in lens: 3.6, 4.3, 6mm, 8mm, 12mm optional15) Gamma characteristic: 0.4516) BLC: on17) Power consumption: 12V DC18) Dimension (D x L x H): 66 x 85 x 140mm19) Weight: about 573g (net); 845g (including package)20) Working temp.: -10 ~ 50°C (max. humidity 95%)21) Storage temp.: -20 ~ 60°C (max. humidity 95%)

Add to Basket

Web address

Other goods of this manufacturer :

D/N Color Camera
	Features:1) Day / night color CCD camera2) With 18pcs of IR LEDs3) IR distance: about 20 - 25m4) Metal and strengthen glass caseSpecifications:1) Model no.: TT-RSO32C2) Image sensor: 1/3" CCD3) P

Day / Night Color CCD Camera
	Features:1) Day / Night color CCD camera2) With 18pcs of IR LEDs3) IR distance: about 20 - 25m4) Metal and strengthen glass caseSpecifications:1) Model no.: TT-RSO32C2) Image sensor: 1/3" CCD3) P

Day/Night Camera
	IR Vandal Proof Outdoor CameraFeatures:1) Model: TT-HLSO32CVP2) Image sensor: 1/3" Sony CCD3) Horizontal resolution: 420 TV Lines4) TV system: PAL/NTSC5) Pixels PAL (H x V): 500 x 582 PAL (H: 15.

Digital Video Board (MPEG4 / H.264 Optional)
	Product Name: Digital Video Board (MPEG4 / H.264 Optional)Model Number: TT-S10204Place of Origin: ChinaBasic Functions:1-2 Channels real-time or 3-4 Channels non-real-time surveillanceSupport 6 Cards

Digital Video Board (MPEG4/H.264 Optional)
	Specifications:1) Input type: 4BNC x 12) Video input(s): 4 channel, screen division: 1 / 4 / 9 / 163) Audio input(s): 1-channel, audio input via microphone4) Recording rate: 60fps (NTSC), 50fps (PAL)5

Digital Video Recorder with full Internet Function
	System specifications:1) Multiple language system: Chinese (Simplified) / Chinese (Traditional) / English2) 2-level password protection: user password, administrator password3) OSD user interface: yes

Dome Cam
	We are a cctv cam and DVR card manufacturer in Shenzhen China.The product specifications of this model is as follow:Model no.: TT-25SO32C1) Image sensor: 1/3" Sony DSP Super HAD CCD2) Pixels: PAL

Dome Camera
	Product Name: Dome CameraModel Number: TT-25SO32C, TT-25SH42CPlace of Origin: ChinaSpecifications:Model no.: TT-25SO32C1) Image sensor: 1/3" Sony DSP Super HAD CCD2) Pixels: PAL=500 (H) x 582 (V)

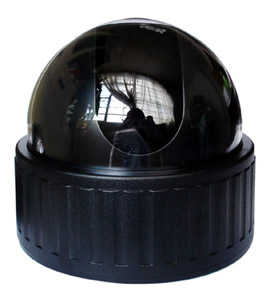

Dome Camera with Manual Varifocal Lens
	Major Features:Including 3.5-8mm manual varifocal lensProduct Specifications:Model: TT-HDSO48CLImage Sensor: Color 1/3`` SONY DSP super HAD CCDHorizontal Resolution: 480 TV LinesTV system: PAL/NTSCPix
