Seven-Color Plastic Press
Main technical details:1) Effective printing width: 800mm2) Max width of base material: 850mm3) Printing speed: 10-70m/min4) Speed of machine: 100m/min5) Max. dimensions of rolling and releasing: 600mm6) Inside dimensions of roll core of base material: 76mm7) Diameter of plant roller: 120-300mm8) Heating power of oven: 33kW9) Total power of machine: 45kW10) Weight of machine: 6,500kg11) Overall dimensions: 9,100 x 2,500 x 2,400mmPerformance and characteristics:1) The main machine adopts frequency control of motor speed2) Releasing tension adopts full-automatic tension control and magnetic powder brake3) Rolling and tractive adopts torque motor4) Airproof structure was lengthened, and independent heating send the breezesystem5) Pneumatic pressing system and pneumatic ink-scraping system (scraper waverright and left)6) It adopts double-station that structure of rolling and releasing replaying thematerial without stopping the machine7) Air shaft is used for unwinding and rewinding shaft providing convenient assembleand unassembled easy8) It is provided with display of press line speed and accumulated length in meter9) Automatic ink circulation system is provided10) Quality cast-iron structure for the whole set provides good stability and vibrationabsorbing capability
Use: it uses sensitization resin as flexible printing plate, suitable for printingsuch packing materials as polyethylene, polypropylene bag, cellophane and rollpaper. It is a kind of ideal printing eq
Product Name: Six-Color Flexography Printing MachineModel Number: YTPlace of Origin: ChinaUse: it uses sensitization resin as flexible printing plate, suitable for printingsuch packing materials as po
Product Name: Thermal Cutting Bag Making MachineModel Number: DRQPlace of Origin: ChinaUse: the machine is used for OPP plastic bag making and hot-cutting of circulartype color PPE film. It is provide
Product Name: Two-Color Flexography Printing MachineModel Number: YTPlace of Origin: ChinaUse: it uses sensitization resin as flexible printing plate, suitable for printingsuch packing materials as po
Use: it uses sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal prin
Use: this machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper. and can cut edge, separate and cut material according to diff
Product Name: Vertical Automatic Separating & Cutting MachineModel Number: LFQPlace of Origin: ChinaUse: this machine is suitable for separating and cutting such various rollmaterials as BOPP, PET, CP

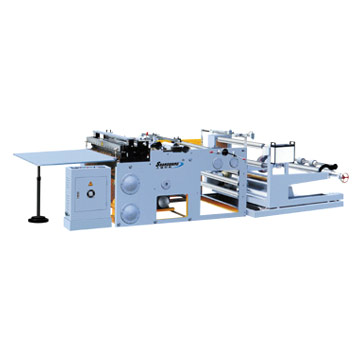

This machine adopts straight-line structure horizontal cutting and circle-knife structure vertical cutting. It is suitable for horizontal and vertical cutting such cylinder material as paper, brand, t
