Application:Stuff with different specific gravity falls at different speed in fluid. By thisprinciple and combined with grinders, spiral separator is used to eliminate dustand water in the mining materials.Models available:1) SS-300: a) Rotary speed: 8.3 - 22r/min b) Returned sand: 30 - 80MT/h c) Flooding: 10 - 30MT/h d) Chute slope: 12° e) Power: 1.1kW2) SS-500: a) Rotary speed: 8 - 15.5r/min b) Returned sand: 140 - 260MT/h c) Flooding: 32MT/h d) Chute slope: 14 - 18° e) Power: 1.1kW3) SS-750: a) Rotary speed: 4.5 - 10r/min b) Returned sand: 250 - 570MT/h c) Flooding: 65 - 154MT/h d) Chute slope: 14 - 18° e) Power: 3kW4) SS-1000: a) Rotary speed: 1.6 - 7.4r/min b) Returned sand: 216 - 1,000MT/h c) Flooding: 50 - 260MT/h d) Chute slope: 14 - 18° e) Power: 5.5kW5) SS-1200: a) Rotary speed: 5 - 7r/min b) Returned sand: 1,170 - 1,600MT/h c) Flooding: 155MT/h d) Chute slope: 12° e) Power: 7.5kW6) SS-1500: a) Rotary speed: 2.55 - 6r/min b) Returned sand: 1,340 - 2,740MT/h c) Flooding: 235MT/h d) Chute slope: 16° e) Power: 7.5kW
Application:Stuff with different specific gravity falls at different speed in fluid. By thisprinciple and combined with grinders, spiral separator is used to eliminate dustand water in the mining mate
Stuff with different specific gravity falls at different speed in fluid, by this principle and combined with grinders; spiral separator is used to eliminate dust and water in the mining material.Ttpe(
Impact crusher of Model PF1214 can be applied as secondary or tertiary crushing section if a complete crushing line, with excellent crushing ration, high performance and low maintenance cost.
The vertical shaft impact crusher is widely used for moderate and fine crushing ofall kinds of hard and fragile material in rock, refractory, cement, quartzite andiron ore uniquely for the sand of bui
Models available:1) GZD850 x 3000:a) Size of chute: 850 x 3,000b) Capacity: 120MT/hc) Max. feed size (mm): 400d) Power: 3.0 x 2kWe) Overall dimensions (mm): 250 x 1,300 x 1,3102) GZD1000 x 3600:a) Siz

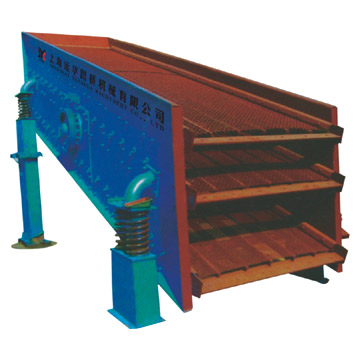

Application:Vibrating screens are ideal subsidiary equipment for stone-making production lineand sand-making production line.Models available:1) 2YZS-1548:a) Screen size: 4,800 x 1,500mmb) Deck: 2c) M
Vibrating screen moves round, has multilayers and is high efficient. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drop down the long line. This machin
Application:Vibrating screens are ideal subsidiary equipment for stone-making production lineand sand-making production line.Models available:1) 2YZS-1548:a) Screen size: 4,800 x 1,500mmb) Deck: 2c) M
The Hammer Crusher are used to crushing ordinary fragile ores of the compressive strength no more than 200Mpa, such as limestone, gypsum, coal, marl, sandshale etc. These series product features of hi
