Aligning Machine
Product Name: Aligning MachinePlace of Origin: ChinaPreliminary leveling unit composed of power and main motorPower part is composed of leveling base, speed reducer, YWZ arrester, coupling, power distribute box, joint spindle joint sleeve, universal drive shaft and so on.Main motor equip with high power direct current adjust motor and high capabilitydirect current adjustment. With more high starting pitch of strand than rating,less voice and good reliability.Main motor is separated up and down two rolls each part. composed of machine base,double housing type frame, 15 leveling rolls (7 up and 8 down), up/down bearingbase, beam, roll support frame,, worm wheel and worm pole drive to control theupper roll come up and down. Two speed reducers adjust the distance of up and downin entrance and exit rolls. Simple adjustment manually, display on the percentgauge. Leveling working roll diameter is 140mm, 42Cr Mo material. Its formingprocures is modulator and intermediate frequency quench and surface plating Crprecise grand, no mark on the surface of sensitivity material. The hardness of levelingworking roll is HRC55-58. We adopt needle roller bearing and plane bearingsupport leveling roller so as to reduce the resistance of whole system. Two sidesof the upper roll axial seat is arc rail structure, can adjust the entranceand exit distance between the upper and lower rolls. The rolls joint with universaldrive shaft and power distribute box, both is initiative move, with high precise.
Preliminary leveling unit composed of power and main motorPower part is composed of leveling base, speed reducer, YWZ arrester, coupling, power distribute box, joint spindle joint sleeve, universal dr
Preliminary leveling unit composed of power and main motorPower part is composed of leveling base, speed reducer, YWZ arrester, coupling, power distribute box, joint spindle joint sleeve, universal dr
Preliminary leveling unit composed of power and main motorPower part is composed of leveling base, speed reducer, YWZ arrester, coupling, power distribute box, joint spindle joint sleeve, universal dr

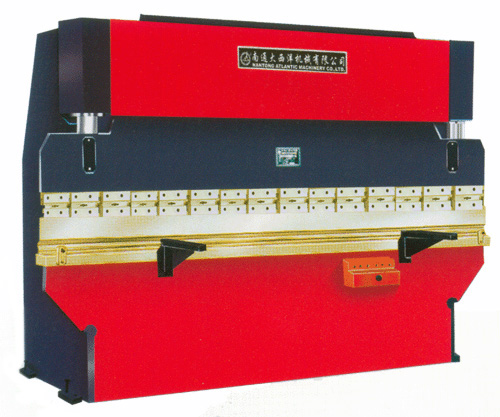

Performance:Steel-welded Construction, vibration to eliminate stress, with high strength and good rigidity. Hydraulic top drive, steadiness and reliability.Mechanical stop, steel torsion bar to mainta
