Cotton Carding Machine
Product Name: Cotton Carding MachineModel Number: FA219Place of Origin: ChinaSpecifications:1) Production rate: 100kg/h (nominal), 50kg/h (recommended)2) Weight of lap or tuft web: 300 - 1,000g/m3) Sliver weight: 3 - 8g/m4) Max. delivery speed: 300m/min5) Feeding way: forward feeding (reverse feed table)6) Revolving flats (working / total): 28 / 84 (with a difference of 0.56mmbetween heel and toe)7) Stationary flats:a) 10 on the feed side of cylinderb) 8 on the delivery side of cylinderc) Coupled with 2 trash masters at each side8) Doffer speed control: inverter, infinitely variable (end-forming at a lowerspeed)9) Total draft: 68 - 30010) Compressed air consumption: 0.3 cubic meters per hour, air pressure: 0.7MPa11) Suction air volume: 4,200 cubic meters per hour, resistance in suctionport over -1,000Pa12) Exhaust of card sweep: by conveyor lattice or enforced suction (optional)13) 13 suction points:a) Licker-in exhaust hoodb) 2 licker-in suction pointsc) Flat cleaningd) 4 trash masterse) 2 flat inlet and outletf) Stripper cleaningg) Flat back14) Can sizes: dia.: 600 x 1,100mm, dia.: 900 x 1,100m (optional)15) Installed power: 7.64kWa) Motor for main drive: 4kWb) Motor for doffer: 1.5kWc) Motor for brush roll: 0.37kWd) Motor for flat cleaning ends: 0.05kW x 2e) Motor for coiler: 0.75kWf) Motor for flat drive: 0.37kWg) Motor for flat cleaning roll: 0.55kW16) Wire: Chinese wire (standard), Kanai, Ecc, Graf (optional)
Product Name: Cotton Carding MachineModel Number: FA212Place of Origin: ChinaSpecifications:1) Production rate: 40kg/h (nominal), 28kg/h (recommended)2) Weight of lap or tuft web: 300-1,000g/m3) Slive
Cotton carding machines are used in the cotton spinning industry. Combined with Finetex blowing technique, it becomes an automatic blowing-carding line, features high de-dusting efficiency, maintainin
Product Name: Cotton Carding Machines and Tube Bending MachinesPlace of Origin: ChinaCotton carding machines are used in the cotton spinning industry. Combined with Finetex blowing technique, it becom

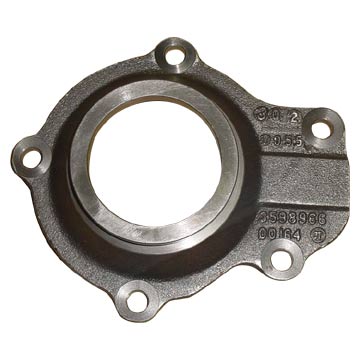

Product Name: Exhaust Outlet AdapterPlace of Origin: ChinaWith rich experience in casting and machining, we can make different automobile partsfor our customers as per drawings, samples and specificat
Product Name: Exhaust Outlet AdapterPlace of Origin: ChinaWith rich experience in casting and machining, we can make different automobile partsfor our customers as per drawings, samples and specificat

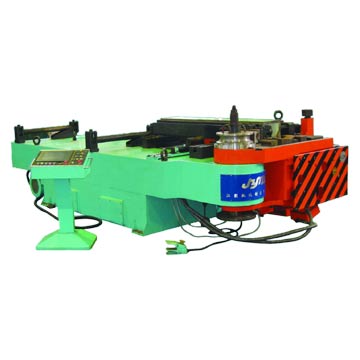

Features:1) Models: W27Y-89CQ, WZ27Y-89CQ (CCW bending), W27Y-114CQ,WZ27Y-114CQ (CCW bending)2) Non-mandrel type, capable of bending thick-wall and small-radius alloysteel pipes with high strength3) S

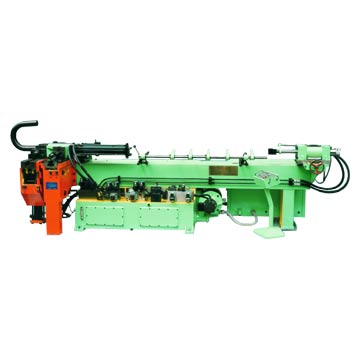

Product Name: NC Tube Bending MachinePlace of Origin: ChinaFeatures:1) Models: W27Y-16C, W27Y-38C, W27Y-60C, W27Y-89C, W27Y-114C2) Can make bends with diameter ranging from 8mm to 114mm3) Controlled b
Features:1) Models: W27Y-16C, W27Y-38C, W27Y-60C, W27Y-89C, W27Y-114C2) Can make bends with diameter ranging from 8mm to 114mm3) Controlled by GP + PLC, menu display, convenient operation4) With funct
