Description
Consumer Electronics & Electrical Products /  Audio & Video Equipment /  Acoustic sistems /  Acoustic systems /
Producer information
Company:
Guangzhou BMY Electroacoustic Factory

Address:
3 of 8 Gongye 1st Road, Nanshuangyu Village, Shatou Street, Panyu, Guangzhou, Guangdong, China (Mainland) Zip: 511400

Phone:
+86-20-34512381

12" LF Speaker


Specifications:1) Nominal diameter: 12"2) Nominal impedance: 8ohms3) Power(RMS): 300W4) Sensitivity (1W/1m): 98dB5) Frequency range: 50-3,000Hz6) Voice coil diameter: 3"7) Fs: 50Hz8) Re (D.C.): 4.5ohms9) Qms: 2.510) Qes: 0.2811) Qts: 0.2512) Vas: 75L13) Cms: 0.17mm/N14) N. (%): 3.5%15) Bl: 16.8T16) Sd: 0.035m217) Basket: die-cast aluminum18) Cone material: paper19) Surrounding: cloth20) Voice coil wire material: copper clad aluminum21) Voice coil bobbin: Kapton22) Magnet: 97.4oz23) Overall diameter: Ø314mm24) Bolt circle diameter: Ø295mm, 8-Ø6.5mm holes25) Cut out diameter: Ø286mm26) Depth: 132mm27) N.W.: 8.5kg

Add to BasketAdd to Basket Web addressWeb address


Other goods of this manufacturer :
12" LF Speaker
Specifications:1) Nominal diameter: 12"2) Nominal impedance: 8ohms3) Power (RMS): 200W4) Sensitivity (1W/1m): 97dB5) Frequency range: 45-3,000Hz6) Voice coil diameter: 3"7) Fs: 45Hz8) Re (D.C.): 4.8oh
15" LF Speaker
Specifications:1) Nominal diameter: 15"2) Nominal impedance: 8ohms3) Power(RMS): 400W4) Sensitivity (1W/1m): 96dB5) Frequency range: 42-2,500Hz6) Voice coil diameter: 4"7) Fs: 42Hz8) Re (D.C.): 5.5ohm
18" LF Speaker
Specifications:1) Nominal diameter: 18"2) Nominal impedance: 8ohms3) Power(RMS): 800W4) Sensitivity (1W/1m): 97dB5) Frequency range: 50-2,000Hz6) Voice coil diameter: 5"7) Fs: 50Hz8) Re (D.C.): 5ohms9
PA Speaker Driver
Nominal diameter 18inchNominal impedence 8 &OmegaPower (RMS) 800WSensitivity(1w/1m) 97dBFrequency range 50-2KHzVoice coil diameter Φ125mmMagnet dimension Φ*25mmFs 50HzRe(D.C.) 5 &OmegaQms 3.

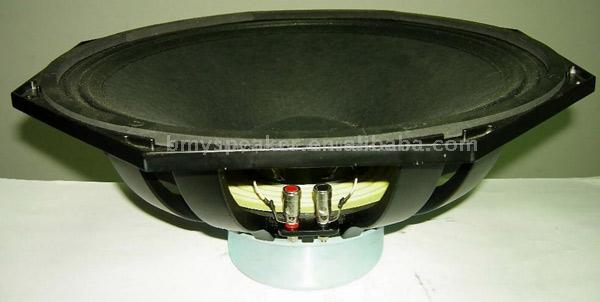

PA Neodymium Speaker
PA Neodymium Speaker ( PA Neodymium Speaker)
1) Nominal diameter : 15inch 2) Nominal impedence : 8Ω3) Power (RMS): 450W4) Sensitivity: 100db5) Frequency range : 39----3KHz6) Voice coil diameter: 4 inch7) Fs: 39Hz8) Re( D.C.) 5.8Ω9) Q

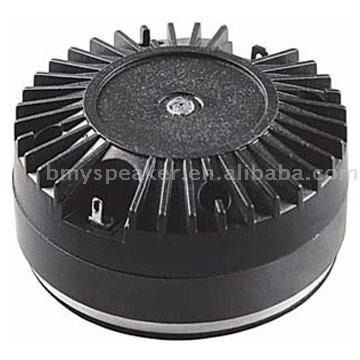

1.35" HF Speaker
1.35" HF Speaker ( 1.35" HF Speaker)
Specifications:1) Nominal diameter: 1.35"2) Nominal impedance: 8 ohms3) Power (RMS): 30W4) Sensitivity (1W/1m): 97dB5) Frequency range: 2,000-20,000Hz6) Fs: 2,000Hz7) Re (D.C.): 6.4 ohms8) Diaphragm m
1.35" HF Speaker
1.35" HF Speaker ( 1.35" HF Speaker)
Specifications:1) Nominal diameter: 1.35"2) Nominal impedance: 8 ohms3) Power (RMS): 30W4) Sensitivity (1W/1m): 97dB5) Frequency range: 1,500-20,000Hz6) Fs: 1,500Hz7) Re (D.C.): 5 ohms8) Diaphragm mat
1.35" HF Speaker
1.35" HF Speaker ( 1.35" HF Speaker)
Specifications:1) Nominal diameter: 1.35"2) Nominal impedance: 8 ohms3) Power: 30W4) Sensitivity (1W/1m): 95dB5) Frequency range: 1,500-20,000Hz6) Fs: 1,500Hz7) Re (D.C.): 5.9 ohms8) Diaphragm materia
1.35" HF Speaker
1.35" HF Speaker ( 1.35" HF Speaker)
Product Name: 1.35" HF SpeakerModel Number: T34-01Place of Origin: ChinaSpecifications:1) Nominal diameter: 1.35"2) Nominal impedance: 8 ohms3) Power (RMS): 30W4) Sensitivity (1W/1m): 97dB5) Frequency
