Producer information
Company:
Guangzhou BMY Electroacoustic Factory

Address:
3 of 8 Gongye 1st Road, Nanshuangyu Village, Shatou Street, Panyu, Guangzhou, Guangdong, China (Mainland) Zip: 511400

Phone:
+86-20-34512381

1.35" HF Speaker


Specifications:1) Nominal diameter: 1.35"2) Nominal impedance: 8 ohms3) Power: 30W4) Sensitivity (1W/1m): 95dB5) Frequency range: 1,500-20,000Hz6) Fs: 1,500Hz7) Re (D.C.): 5.9 ohms8) Diaphragm material: titanium9) Surrounding: titanium10) Voice coil wire material: copper clad aluminum11) Voice coil bobbin: Kapton12) Magnet: 12.4oz.13) Overall diameter: Φ90mm14) Bolt circle diameter: Φ75mm, 4-M6 screw holes15) Depth: 45mm16) N.W.: 1.12kg17) Throat diameter: 1" (25.4mm)

Add to BasketAdd to Basket Web addressWeb address


Other goods of this manufacturer :
1.35" HF Speaker
1.35" HF Speaker ( 1.35" HF Speaker)
Product Name: 1.35" HF SpeakerModel Number: T34-01Place of Origin: ChinaSpecifications:1) Nominal diameter: 1.35"2) Nominal impedance: 8 ohms3) Power (RMS): 30W4) Sensitivity (1W/1m): 97dB5) Frequency
1.35" HF Speaker
1.35" HF Speaker ( 1.35" HF Speaker)
Product Name: 1.35" HF SpeakerModel Number: T34-05Place of Origin: ChinaSpecifications:1) Nominal diameter: 1.35"2) Nominal impedance: 8 ohms3) Power: 30W4) Sensitivity (1W/1m): 95dB5) Frequency range
1.35" HF Speaker
1.35" HF Speaker ( 1.35" HF Speaker)
Product Name: 1.35" HF SpeakerModel Number: T34-04Place of Origin: ChinaSpecifications:1) Nominal diameter: 1.35"2) Nominal impedance: 8 ohms3) Power (RMS): 30W4) Sensitivity (1W/1m): 97dB5) Frequency

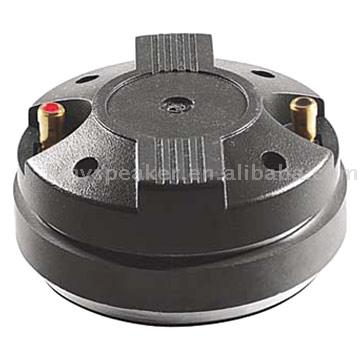

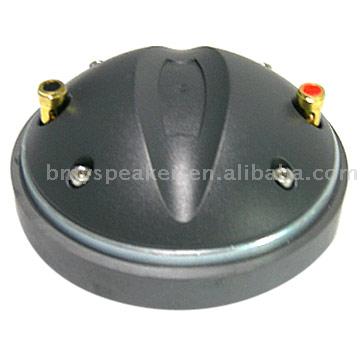

1.75" HF Speaker
1.75" HF Speaker ( 1.75" HF Speaker)
Specifications:1) Nominal diameter: 1.75"2) Nominal impedance: 8Ω3) Power(RMS): 40W4) Sensitivity (1W/1m): 99dB5) Frequency range: 1,500-20,000Hz6) Fs: 1,500Hz7) Re (D.C.): 6Ω8) Diaphragm
1.75" HF Speaker
1.75" HF Speaker ( 1.75" HF Speaker)
Specifications:1) Nominal diameter: 1.75"2) Nominal impedance: 8ohms3) Power (RMS): 40W4) Sensitivity (1W/1m): 98dB5) Frequency range: 1,500-20,000Hz6) Fs: 1,500Hz7) Re (D.C.): 6.2ohms8) Diaphragm mat
1.75" HF Speaker
1.75" HF Speaker ( 1.75" HF Speaker)
Product Name: 1.75" HF SpeakerModel Number: T44-05-8Place of Origin: ChinaSpecifications:1) Nominal diameter: 1.75"2) Nominal impedance: 8ohms3) Power (RMS): 40W4) Sensitivity (1W/1m): 98dB5) Frequenc
1.75" HF Speaker
1.75" HF Speaker ( 1.75" HF Speaker)
Product Name: 1.75" HF SpeakerModel Number: T44-01Place of Origin: ChinaSpecifications:1) Nominal diameter: 1.75"2) Nominal impedance: 8Ω3) Power(RMS): 40W4) Sensitivity (1W/1m): 99dB5) Frequenc
10" LF Speaker
10" LF Speaker ( 10" LF Speaker)
Specifications:1) Nominal diameter: 10"2) Nominal impedance: 8 ohms3) Power (RMS): 200W4) Sensitivity (1W/1m): 95dB5) Frequency range: 55-3,500Hz6) Voice coil diameter: 3"7) Fs: 55Hz8) Re (D.C.): 5.5o
10" LF Speaker
10" LF Speaker ( 10" LF Speaker)
Specifications:1) Nominal diameter: 10"2) Nominal impedance: 8ohms3) Power (RMS): 200W4) Sensitivity (1W/1m): 94dB5) Frequency range: 50-3,000Hz6) Voice coil diameter: 3"7) Fs: 56Hz8) Re (D.C.): 5.7oh
