Manual, Pneumatic and Double Acting Diaphragm Valve (Руководства, пневматические и двойного действия диафрагменный клапан)

Zoom in

Producer information

Company:
Tianjin TIG Instruments Co., Ltd.

Address:
55, Yijing Road, Huanwai, Huayuan Industrial Zone, Tianjin, China (Mainland) Zip: 300110

Phone:
+86-22-27690769~8004 +8005 +8010

Manual, Pneumatic and Double Acting Diaphragm Valve

Product Name: Manual, Pneumatic and Double Acting Diaphragm ValveModel Number: A-ES61~66-T, A-ES68~72-T, A-ES54~58-TPlace of Origin: ChinaFeatures:1) Model: A-T(manual), A-ES61~66-T(normally close), A-ES68~72-T(normallyopen), A-ES54~58-T(double acting)2) Nominal diameter: DN20 ~ 3503) Nominal pressure: PN10, PN164) Working temperature: -40 ~ +175°C5) Body material: cast iron (other materials according to users` requirement)6) Lining material: soft / hard rubber, neoprene, butyl, F467) Diaphragm material: butyl, natural rubber, PTFE8) Connection mode: flange connection GB4216.4, GB4216.5 (otherconnection according to users` requirement)9) No packing box, the closing element is made of flexible diaphragm, no leakageas the valve closes10) Smooth flow way, small flow resistance, large flow capacity, weir body11) Body linings and diaphragms are made of corrosion resistance material sothey have excellent corrosion resistance and abrasion resistance

Add to Basket

Web address

Other goods of this manufacturer :

Pneumatic Actuator
	Product Name: Pneumatic ActuatorModel Number: QZ400 - 3000Place of Origin: ChinaTechnical parameters and features:1) Product name: pneumatic actuator2) Model: QZ400 - 30003) Action: on-off; control4)

Pneumatic Diaphragm Actuator
	Product Name: Pneumatic Diaphragm ActuatorModel Number: Z857 / 867Place of Origin: ChinaFeatures:1) Type: 30, 34, 40, 45, 60, 702) Operating pressure: 20 ~ 100KPa or 40 ~ 200KPa3) Max. output force: 1

Pneumatic O-Type Ball Valve
	Product Name: Pneumatic O-Type Ball ValveModel Number: 63000RA-W-N-301K,63000RA-S-N-301KPlace of Origin: ChinaFeatures:1) KOSO technology from Japan2) Model: 63000RA-W-N-301K (double acting), 63000RA-

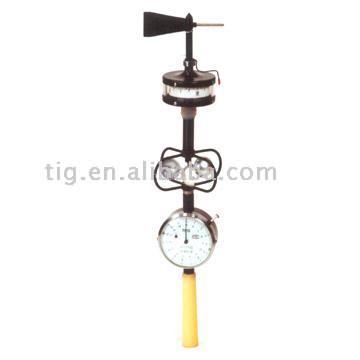

Portable Three-Cup Wind Direction and Velocity Anemoscope
	Product Name: Portable Three-Cup Wind Direction and Velocity AnemoscopeModel Number: DEM6 TypePlace of Origin: ChinaTechnical parameters:1) Wind velocity: 1m/s - 30m/s2) Wind direction: 0° - 360&

Pressure Transmitter
	Product Name: Pressure TransmitterModel Number: YSK SeriesPlace of Origin: ChinaFeatures:1) Span limits: 5 ~ 35,000KPa2) Temperature limits: -25 ~ +60°C (electronic modules)3) Power supply: 12 ~

Single-Jet Water Meter
	Product Name: Single-Jet Water MeterModel Number: LXSG-15DX, 20DXPlace of Origin: ChinaFeatures:1) Product name: single-jet water meter2) Model: LXSG-15DX, 20DX3) Nominal diameter: DN15~204) Temperatu

Solar Energy Power Supply Device
	Product Name: Solar Energy Power Supply DeviceModel Number: TF2Place of Origin: ChinaFeatures:1) Open circuit: 10 ~ 44V2) Short circuit: 500 ~ 2,500mA3) Peak operating: ≥7.5 ~ 33V4) Peak operati

SP Range Itelligent Fequency Coversion Actuator
	Product Name: SP Range Itelligent Fequency Coversion ActuatorModel Number: SPPlace of Origin: ChinaFeatures:1) Power supply: 220V±10%, 50Hz - ±2 - 380V±10%, 50Hz - ±22) Controlling

Stainless Steel Pressure Gauges
	Product Name: Stainless Steel Pressure GaugesModel Number: YTB, YTBF, YTBFNPlace of Origin: ChinaStainless steel pressure gauges:Type: YTB -60 ~YTB -150Weatherproof stainless steel pressure gauges:Typ
