66 - 500kV XLPE Cables
Features and specifications:1) Rated power frequency voltage (kV) U0/U: 48/66, 64/110, 127/220, and 300/5002) Max. power frequency voltage (kV) um, 72.5, 126, 252, and 5503) Thunder impulse withstand voltage up1: 450, 550, 1,050, and 1,67540 Operation impulse withstand voltage up2: 1,2405) Thunder impulse withstand voltage of sheath (kV): 37.5, 37.5, 47.5, and 72.56) Nominal thickness of insulation (mm): 13 - 14, 16 - 19, 24 - 27, and 29 - 337) Conductor cross section (mm²): 240 - 2,5008) Extruded method: triple-extruded, VCV9) Curing method: dry curing, dry cooling10) Insulation material: super clean XLPE insulation material11) Material of metal sheath: Al sheath, copper sheath12) Material of outer sheath: PE, PVC, low smoke and low halogen, low smokeand non-halogen, anti-termite13) Production facilities:conductor machine is imported from Italy, the framestranded machine is imported from CEECO Co, Canada, the rollingstranded machine is imported from SKET Co, Germany. The insulationlayer is produced by 500kV VCV line imported from Nokia, Finland. Theheight of VCV line is 96m above the ground and 12m underground. Thewhole production line is controlled by computer14) Test equipments:the 500kV and below high voltage is put into use inMay, 1998. The 750kV high voltage electrical test and partial dischargetest system is imported from Haefely company, Switzerland. The area ofthe testing screen hall is 1080m², the height is 23.5m, the length is40m and the width is 27m. The hall is screened from every sides. And thereis cooling and hot wind device and excluding wind device in order to insurethe temperature and humidity of the room. The electrical test of 500kV andbelow can be done here
Product Name: 66 - 500kV XLPE CablesPlace of Origin: ChinaFeatures and specifications:1) Rated power frequency voltage (kV) U0/U: 48/66, 64/110, 127/220, and 300/5002) Max. power frequency voltage (kV

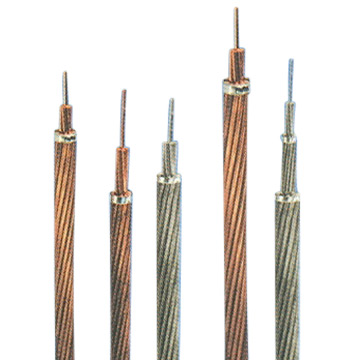

Product Name: ACSR, AAC, TACSR, CU WiresPlace of Origin: ChinaFeatures:1) ACSR, AAC, TACSR, diameter expanded heat-resisting generatrix andCu wires can be produced according to IEC standard, BS, AS, A
Features:1) ACSR, AAC, TACSR, diameter expanded heat-resisting generatrix andCu wires can be produced according to IEC standard, BS, AS, ASTM, DIN.The cross section area is from 16 sq. mm to 1400 sq.
Product Name: Control CablesPlace of Origin: ChinaFeatures:1) CU conductor, PVC or XLPE insulated PVC Sheath control cables2) CU conductor, PVC or XLPE insulated PVC Sheath woven shield controlcables3
Features:1) CU conductor, PVC or XLPE insulated PVC Sheath control cables2) CU conductor, PVC or XLPE insulated PVC Sheath woven shield controlcables3) CU conductor, PVC or XLPE insulated PVC Sheath C

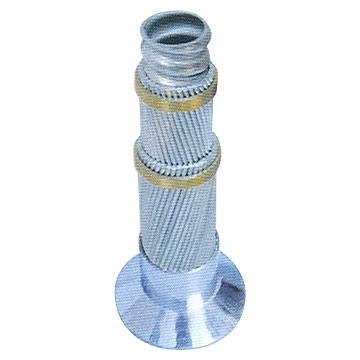

Features:1) 750kV diameter expanded heat-resisting generatrix supported by Al pipein transformer substation2) Applications: mainly used in the generatrix of transformer substation andpower factoriesMa
