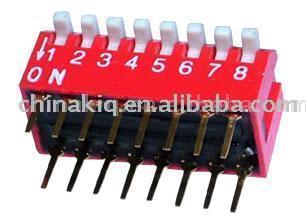

KOP Switch
SPECIFICATION:Mechanical:1, Operation Force: 8N max.2, Operation Temperature: -40-+85°C3, Storage Temperature: -40-+85°C4, Stroke: 0.5mmElectrical:1, Electrical Life: 1000 operations cycles per switch 24V DC, 25mA2, Non-Switching Rating: 100mA, 50V DC3, Switching rating: 25mA, 24V DC4, Contact resistance:(a) 100mΩ max. at initial(b) 100mΩ max. after life test5, Insulation Resistance: 1000mΩ at 100V DC6, Dielectric Strength: 300V AC/min7, Circuit: Single pole single throwSoldering and cleaning processes:1, Keep all switches contact in their "OFF" position for all operations2, WAVW soldering: Recommended Solder Temperature at 240°C, max. 20 seconds3, Hand soldering: Use a soldering iron of 30W, controlled at 350°C, approximately 3 seconds while applying solder or 270°C, max. 5 seconds4, Cleaning process: Flux clean with force rinse, high agitation or triple bath cleaning method; Freon TF or TE give excellent results; When vapor methods are used, do not subject the switch to solvent at temperature above 125°F (51°C)
