General-Purpose Relay


Product Name: General-Purpose RelayModel Number: LY2Place of Origin: ChinaSpecifications:1) Outline dimensions: 27.6 x 21.5 x 34mm2) Material: silver alloy3) Max. switching voltage: 250V AC / 28V DC4) Max. switching power: 420W / 3.75kVa5) Rated load (resistive): 28V DC / 10A, 250V AC6) Nominal voltage: 6 - 220V DC / 6 - 380V AC7) Pick-up voltage: AC ≤75%≤75%8) Drop-out voltage: AC ≥30%, DC ≥15%9) Coil power: 0.9W / 1.0W - 1.3VA10) Contact resistance: ≤50mΩ11) Insulation resistance: ≥500mΩ12) Between open contacts: ≥1,000V AC13) Between coil & contacts: ≥1,500V AC14) Between contacts form: ≥2,000V AC15) Ambient temperature: -45 ~ +70°C16) Operation/release time: ≤20 / 15ms17) Electrical (operation): 100,00018) Mechanical (operation): 10,000,00019) Mounting method: indicator lamp socket type

Add to BasketAdd to Basket Web addressWeb address



Other goods of this manufacturer :
General-Purpose Relay
 General-Purpose Relay ( General-Purpose Relay)
Product Name: General-Purpose RelayModel Number: JQX-13F/4Z (LY4N)Place of Origin: ChinaSpecifications:1) Outline dimensions: 27.6 x 38.5 x 34mm2) Material: silver alloy3) Max. switching voltage: 250V
General-Purpose Relay
 General-Purpose Relay ( General-Purpose Relay)
Product Name: General-Purpose RelayModel Number: MY-3Place of Origin: ChinaSpecifications:1) Outine dimensions: 27.6 x 21.5 x 34mm2) Material: silver alloy3) Max. switching voltage: 28V DC / 250V AC4)
General-Purpose Relay
 General-Purpose Relay ( General-Purpose Relay)
Product Name: General-Purpose RelayModel Number: HH52PPlace of Origin: ChinaSpecifications:1) Outline dimensions: 27.6 x 21.5 x 34mm2) Material: silver alloy3) Max. switching voltage: 28V DC / 250V AC
General-Purpose Relay
 General-Purpose Relay ( General-Purpose Relay)
Product Name: General-Purpose RelayModel Number: RM2S-UPlace of Origin: ChinaSpecifications:1) Outline dimensions: 27.6 x 21.5 x 34mm2) Material: silver alloy3) Max. switching voltage: 28V DC / 250V A
General-Purpose Relay
 General-Purpose Relay ( General-Purpose Relay)
Specifications:1) Outine dimensions: 37.4 x 34.7 x 52mm2) Material: silver alloy3) Contact quantity: MK-2P is 2 group delay contact, MK-3P is 3 group delaycontact4) Max. switching voltage: 120V DC / 2
General-Purpose Relay
 General-Purpose Relay ( General-Purpose Relay)
Specifications:1) Outine dimensions: 27.6 x 21.5 x 34mm2) Material: silver alloy3) Max. switching voltage: 28V DC / 250V AC4) Max. switching power: 140W / 3.75kVa5) Rated load (resistive): 10A, 28V DC
General-Purpose Relay
 General-Purpose Relay ( General-Purpose Relay)
Specifications:1) Outine dimensions: 27.6 x 21.5 x 34mm2) Material: silver alloy3) Max. switching voltage: 28V DC / 250V AC4) Max. switching power: 140W / 1.25kVa5) Rated load (resistive): 5A, 28V DC

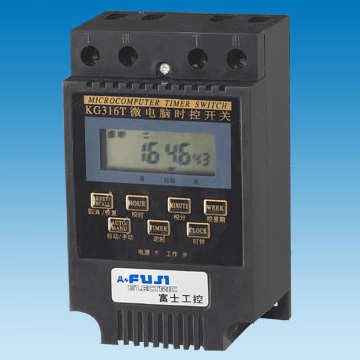

Microcomputer Automatic Clock Switch Series Relay
 Microcomputer Automatic Clock Switch Series Relay ( Microcomputer Automatic Clock Switch Series Relay)
Product Name: Microcomputer Automatic Clock Switch Series RelayModel Number: KG316TPlace of Origin: ChinaSpecifications:1) Outline dimensions: 122 x 75 x 60mm2) Contact capacity: AC 250V, 5A3) Power:o
PCB Relay
 PCB Relay ( PCB Relay)
Specifications:1) Contact form: 1A, 1C2) Contact material: silver alloy3) Max. operation current: 15A4) Min. load: 10mA, DC 5V5) Max. operation voltage: AC 250V/DC 30V6) Max. operation power: 240V AC/
