Producer information

Company:
Dongguan Sanyou Electrical Appliances Co., Ltd.

Address:
Erhuan Road, Xitou Industrial Zone, Houjie Town, Dongguan City, Guangdong Province. China

Phone:
+0086-755-83630836 +83657816

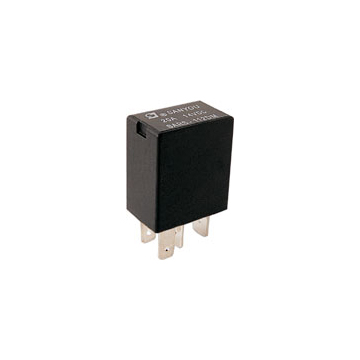

Automotive Relay

Specifications:1) Contact arrangement: 1A, 1C2) Contact material: silver alloy3) Contact resistance (6V 1A): 100mΩ (max.)4) Rating:a) Nominal switching capacity: 10A 14VDCb) Resistive load5) Max. switching current: 10A6) Max. switching power: 210W7) Expected life (min. OPE) mechanical at 180cpm: 1 x 1078) Expected life (min. OPE) electrical at 20cpm: 1 x 105Coil data:1) Coil consumption sensitivity: 1.1W2) Coil voltage: 3 - 24V DCCharacteristics1) Operation time: 10msec (max.)2) Release time: 5msec (max.)3) Initial breakdown voltage between coil and contact: 500V AC (50 / 60Hz) for 1 min4) Initial breakdown voltage between open contacts: 1,000V AC (50 / 60Hz) for 1 min5) Insulation resistance: 100MΩ (min.) (500V DC)6) Ambient temperature: -40 ~ 85oC7) Operating humidity: 45 - 85% RH8) Shock resistance (functional): 10G (min.)9) Shock resistance (destructive): 100G (min.)10) Vibration resistance (functional): 10 - 55Hz at double amplitudes of 1.5mm11) Vibration resistance (destructive): 10 - 55Hz at double amplitudes of 1.5mm12) Unit weight: 5.5g (approx.)13) Coil specification (at 20oC):a) Pick-up voltage (VDC): 75% (max.)b) Drop-out voltage (VDC): 5% (min.)Inner packing:25pcs/plastic tubeOuter packing:1,000pcs (40 plastic tubes)/outer cartonCarton dimensions: 410 x 175 x 180mmWeight: 12kg

Add to Basket

Web address

Other goods of this manufacturer :

Automotive Relay
	Features:1) 20A switching capacity2) Both single and twin style are availableSpecifications:1) Contact arrangement: 1C, 2C2) Contact material: silver alloy3) Contact resistance (6V 1A): 100mΩ (ma

Automotive Relay
	Features:1) 25A motor switching capacity2) Class H is availableSpecifications:1) Contact arrangement: 1C2) Contact material: silver alloy3) Contact resistance (6V 1A): 100mΩ (max.)4) Rating: resi

Automotive Relay
	Product Name: Automotive RelayModel Number: SARKPlace of Origin: ChinaFeatures:1) 30A switching capacity miniature size automotive relay2) Sealed type is available Specifications:1) Contact arrangemen

Automotive Relay
	Product Name: Automotive RelayModel Number: SARSPlace of Origin: ChinaFeature1) Ultra-miniature size with universal footprint2) High contact capacitySpecifications:1) Contact arrangement: 1A, 1C2) Con

Automotive Relay
	Product Name: Automotive RelayModel Number: SARAPlace of Origin: ChinaFeatures:1) 25A motor switching capacity2) Class H is availableSpecifications:1) Contact arrangement: 1C2) Contact material: silve

Automotive Relay
	Product Name: Automotive RelayModel Number: SARGPlace of Origin: ChinaFeatures:1) 20A switching capacity2) Both single and twin style are availableSpecifications:1) Contact arrangement: 1C, 2C2) Conta

Automotive Relay
	Product Name: Automotive RelayModel Number: SARLPlace of Origin: ChinaFeatures:1) Simple magnetic circuit to meet mass production requirements for low cost offers2) Standard type contact form is 1 for

Automotive Relay
	Product Name: Automotive RelayModel Number: SARBPlace of Origin: ChinaFeatures:1) PC board automobile relays2) WJ206 capable of switching lamp 150W or 12V DC 40A (resistive load)3) Low cost and high p

Automotive Relay
	Product Name: Automotive RelayModel Number: SAREPlace of Origin: ChinaFeatures:1) High switching power, low cost, high performance2) Single and double contact types offer switching capacity of 40A3) A
