3.5GHz BTS Antenna

Product Name: 3.5GHz BTS AntennaModel Number: TDJ-3517A-60Place of Origin: ChinaSpecifications:1) Frequency range: 3,350-3,650MHz2) Polarization: vertical3) Gain: 17dBi4) VSWR:5) Half-power beam width: horizontal: 60°, vertical: 10°6) Front to back ratio: >25dB7) Maximum input power: 100W8) Connector: N-female or 7/16DIN-female9) Height x width x depth (mm): 560 x 160 x 6510) Weight: 3kg11) Rated wind velocity: 60m/s12) Radom material: PVC13) Mounting hardware: 30-60mm

Add to Basket

Web address

Other goods of this manufacturer :

3.5GHz Grid Parabolic Antenna
	Features:1) 3400 - 3700MHz2) Gain: 26dBi3) VSWR:4) 6o/ 8o

450MHz Dual-Polarized Antenna
	Features:1) 450 - 470MHz2) Gain: 15dBi3) VSWR:4) 65o/ 17o

450MHz Dual-Polarized Antenna
	Features:1) 450 - 470MHz2) Gain: 15dBi3) VSWR:4) 65o/ 17o

5.8GHz Sector Antenna
	Features:1) 5725 - 5875MHz2) Gain: 18dBi3) VSWR:4) 60o/ 7o5) F/B: ＞30dBN-Female connector

Cavity Splitter
	Features:1) Model No.: CPS0825-02/03/04 (two-way,three-way, four-way)2) Frequency Range: 800-2500 MHz3) Insertion Loss: more than -3.6/-5.6/-6.84) VSWR: less than 1.35) Maximum Input Power: 200W6) Con

Cavity Splitter
	Features:1) Model No.: CPS0825-02/03/04 (two-way,three-way, four-way)2) Frequency Range: 800-2500 MHz3) Insertion Loss: more than -3.6/-5.6/-6.84) VSWR: less than 1.35) Maximum Input Power: 200W6) Con

Coupler
	CDC0825-05Specifications:1) Frequency range: 800-2,500MHz2) VSWR:3) Coupling value (dB): 5±0.64) Isolation (dB):5) Insertion loss (dB): >-2.26) Maximum input power: 2007) Impedance: 508) Connecto

Coupler
	CDC0825-05Specifications:1) Frequency range: 800-2,500MHz2) VSWR:3) Coupling value (dB): 5±0.64) Isolation (dB):5) Insertion loss (dB): >-2.26) Maximum input power: 2007) Impedance: 508) Connec

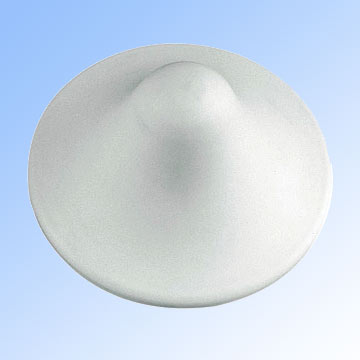

Directional Ceiling-Mount Antenna
	Features:1) 824-960MHz & 1710-2500MHz2) Gain: 3dBi3) VSWR:4) 120o/ 55o5) Diameter: 165mm6) Height: 85mm
