Super Optical Workstation (Оптический Super Workstation)

Zoom in

Producer information

Company:
Sichuan Jiuzhou Electric Group Co., Ltd.

Address:
16 Yuejin Road, Mianyang, Sichuan, China (Mainland) Zip: 621000

Phone:
+86-755-25334921

Super Optical Workstation

Optical specifications:Optical wavelength: 1,290~1,580nmMax optical input: +3dBmBest optical input power: -3 ~ 0dBmPower voltage response degree: 850mV/WReceiving optical power test voltage: 1V/mWReverse optical transmitting test voltage: 1V/mwMani-backup path switch power:Optical input reflection loss: ≥45dBOptical link C/CTB: ≥65dBcOptical link C/CSO: ≥61dBcOptical link C/N: ≥51dBc(84-ch PAL-D signals, 3.6% modulation degree for each channel, -2dBm optical receiving)RF specifications:Bandwidth: 5~862MHz (optional)Forward RF reflection loss: ≥16dB (87~550MHz), ≥14dB (550~862MHz)Reverse bandwidth: 5~65/87MHz (optional)Output level (-2dBm optical receiving): ≥106dBμV (6 outputs), ≥110dBμV (4 outputs)Test point level: -30±1.5dBμV (against output)AGC range: ±3/±0.5dB (PF: 495.25MHz)Inside band flatness: ±0.5dBOthers:AC input voltage: 35~65/90V (optional when order)AC bypass current: ≤10AMax. power consumption: 100WHum modulation: ≥60dBResist lighting strike: 5 (10/700μs)kVOperating temperature: -25 ~ +55oCSize: 516 x 270 x 218 mmWeight: 15.5kg

Add to Basket

Web address

Other goods of this manufacturer :

Super Optical Workstation
	Optical specifications:Optical wavelength: 1,290~1,580nmMax optical input: +3dBmBest optical input power: -3 ~ 0dBmPower voltage response degree: 850mV/WReceiving optical power test voltage: 1V/mWReve

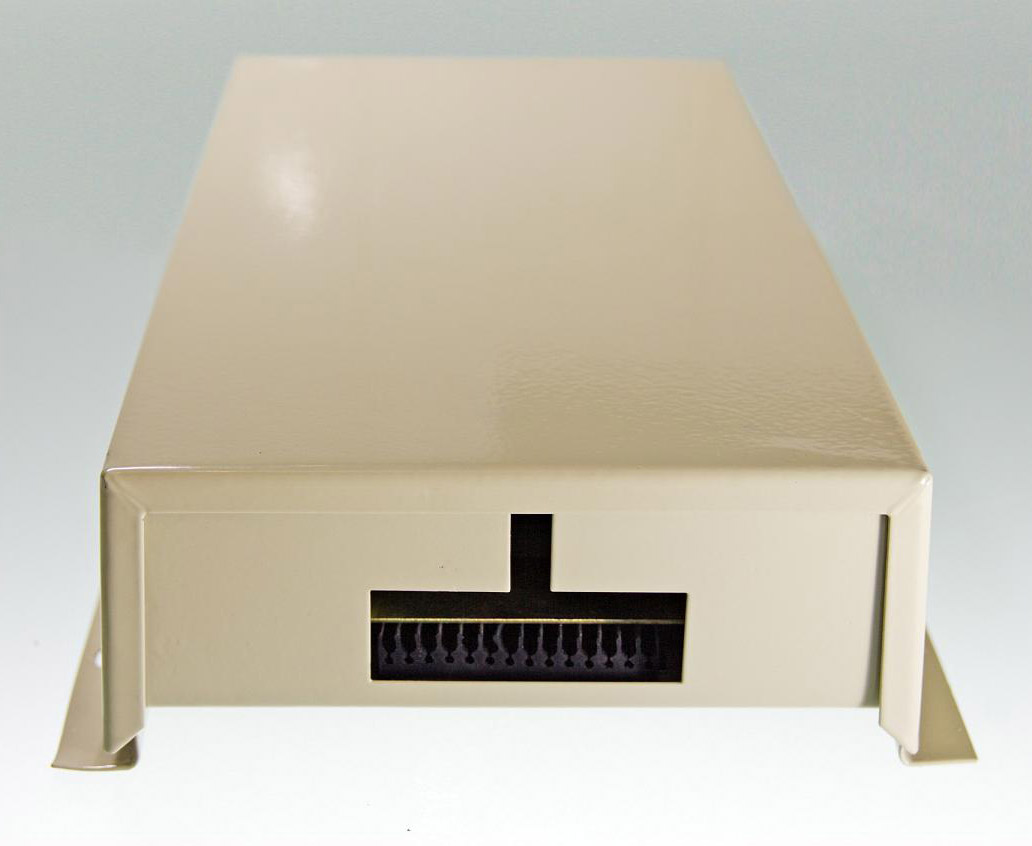

Terminal Box
