Description
Producer information
Company:Shenzhen Bright-Moon Industrial Co., Ltd.
Address:2/F, Unit B, Building A, Xifa Section C, Yintian Industrial Zone, Xixiang Town, Bao'an, Shenzhen, Guangdong, China (Mainland) Zi
Phone:+86-755-27158776
MMDS MMDS specifications:1) Input freq. range: 2,500 to 2,700MHz2) Output freq.: decided by customers3) L.O. frequency: 1838, 1998, 2030, 2033, 2065, to 2468MHz4) L.O. stability: ≤±30kHz (-40 - +70°C)5) Image rejection: ≥50dB6) Noise figure: 2.5dB7) VSWR: 1.5:18) IF rejection: ≥80dB9) PCS rejection: ≥100dB10) WCS rejection: ≥50dBc11) Gain: 36±2dB12) L.O. leakage RF-port: ≤-85dBm13) L.O. leakage IF-port: ≤-50dBm14) L.O. phase noise: -80dBc@100Hz offset, -92dBc@1kHz offset,-93dBc@10kHz offset, -95dBc@100kHz offset, -120dBc@1MHz offset15) Output P1dB: +14dBm (typ.)16) Gain flatness over entire range: ≤±1.5dB17) Gain flatness: ≤0.2dB/channel18) IF output impedance: 75ohm19) Spurious in IF band: ≤-100dBm20) DC input voltage: 12V - 24V21) Input type: integrated dipole antenna22) Operating temperature: -40 - +70°C23) Storage temperature: -40 - +80°C24) Relative humidity: 0% - 95%25) Dimensions: 265 x 88 x 46mm26) Weight: 350g Add to Basket
Web address
Other goods of this manufacturer :
MMDS and MMDS Power Supply
MMDS power supply specifications:1) Input voltage: 230V±10% or 115V±10%2) Input frequency: 47Hz - 63Hz3) Output voltage: 24V4) Output current: 0.35A5) Operating temperature: -10 ~ +55oC6) In
MMDS and MMDS Power Supply
MMDS power supply specifications:1) Input voltage: 230V±10% or 115V±10%2) Input frequency: 47Hz - 63Hz3) Output voltage: 24V4) Output current: 0.35A5) Operating temperature: -10 ~ +55oC6) In
MMDS and MMDS Power Supply, LNBF
MMDS specifications:1) Input freq. range: 2,500 to 2,700MHz2) Output freq.: decided by customers3) L.O. frequency: 1838, 1998, 2030, 2033, 2065, to 2468MHz4) L.O. stability: ≤±30kHz (-40 -
MMDS and MMDS Power Supply, LNBF
MMDS specifications:1) Input freq. range: 2,500 to 2,700MHz2) Output freq.: decided by customers3) L.O. frequency: 1838, 1998, 2030, 2033, 2065, to 2468MHz4) L.O. stability: ≤±30kHz (-40 -
MMDS and MMDS Power Supply, LNBF
MMDS power supply specifications:1) Input voltage: 230V±10% or 115V±10%2) Input frequency: 47Hz - 63Hz3) Output voltage: 18V4) Output current: 0.2A5) Operating temperature: -10 ~ +55oC6) Inp

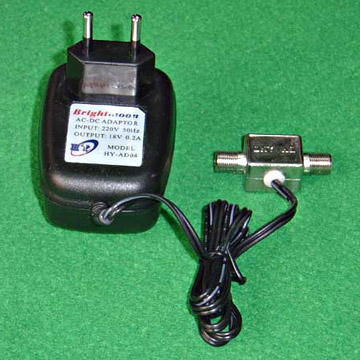

MMDS Power Supply
Product Name: MMDS Power SupplyModel Number: HY-AD03Place of Origin: ChinaMMDS power supply specifications:1) Input voltage: 230V±10% or 115V±10%2) Input frequency: 47Hz - 63Hz3) Output volt
MMDS Power Supply
MMDS power supply specifications:1) Input voltage: 230V±10% or 115V±10%2) Input frequency: 47Hz - 63Hz3) Output voltage: 18V4) Output current: 0.2A5) Operating temperature: -10 ~ +55oC6) Inp
MMDS Power Supply
MMDS power supply specifications:1) Input voltage: 230V±10% or 115V±10%2) Input frequency: 47Hz - 63Hz3) Output voltage: 24V4) Output current: 0.35A5) Operating temperature: -10 ~ +55oC6) In
Multi Switch
Multi-switch specifications:1) LNB frequency range: 950 to 2,400MHz2) ANT frequency range: 5 to 860MHz3) Insertion loss:a) LNB to RX: 3dBb) ANT to RX: 3dB4) Isolation: 26dB5) LNB V voltage output: 13V
