Double Drives
This series is a set of integrated speed-down driver, which uses 2 DC motors. Itis intended to be used for home bed`s head and tail up and down, and the driverhas properties of low noise, strong push force, stable drive, simple installation,and easy operation.Specifications:1) 2 x DC (24V) motors are installed in one plastic body, can drive bed headand tail up and down individually or simultaneously2) Distance switches can cut off power when push block is moved to limitedpositions, the limited positions can be regulated as per user`s need3) Protection classification: Class II4) Protective degree: IP205) Supplying power: AC 230V / 50-60Hz6) Max. rated loading: 2 x 3,500N7) Stroke: head 87, feet 698) Max. driving speed: 5.4mm/s9) Outlying transformer (50VA/55VA) with thermal fuse to prevent fromoverload10) Functions:a) Handle operating boardb) Bed head or tail upc) Bed head or tail downd) Bed head and tail up togethere) Bed head and tail down together11) To avoid overload, it has CPU over loading, continual operating time:≤2min (10s inside operation continuous calculation); if continualoperating time: ≥2min, automatic rest time is 18min12) Driver power and transformer cable must be connected correctly13) Repair of the product must be completed by specialist, and main powermust be switched off14) Any damages caused by non-authorized persons dismount or repairing,or changing the using way, are out of manufacturer`s responsibilities15) Do not put in wet environment16) Warning: parts of the products shall not be used as children`s toy, andit is forbidden to operate the products by children when no adults aside17) Installation manual:a) Make the driver in driving connection positionb) Aim at bed joints as bed-head and bed-tail directions, and beidentical in the positionc) Connect handle board, then connect main power plugd) Connect main powere) Push the double-down button, check where "normal position"
This series is a set of integrated speed-down driver, which uses 2 DC motors. Itis intended to be used for home bed`s head and tail up and down, and the driverhas properties of low noise, strong push
Features:These beds are iron structureWe can change materials, colors, sizes according to your requirementWe can install massage machines into the bed to relax each muscle of your body completely and
Features:These beds are iron structureWe can change materials, colors, sizes according to your requirementWe can install massage machines into the bed to relax each muscle of your body completely and
Features:1) XYH3 series handset can operate 1 - 2 linear actuator, its design is speciallyexquisite, and suitable for massage chair with XYH4 series controllers2) XYH1 handset can operate 1-4 linear a

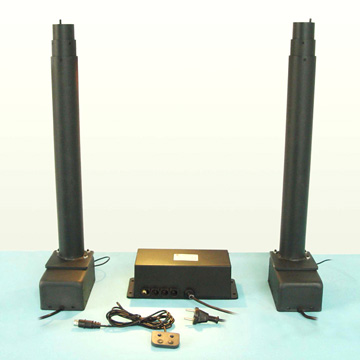

Instruction manual: all tables are preset from factory to run from lowest level tothe highest level, but all tables must be initialized after assembly and beforeusing (zero setting) item 1-4. The mast
Instruction manual: all tables are preset from factory to run from lowest level tothe highest level, but all tables must be initialized after assembly and beforeusing (zero setting) item 1-4. The mast
Features:1) Applications: medical and family areas such as hospital and care beds,wheelchairs, patient-lifters, recliners2) Input voltage: 12V DC / 24V DC3) Largest charge, pulling force: 10,000N; thr
