DC Pulsed TIG Welding Machine (DC импульсный TIG сварочный станок)

Zoom in

Producer information

Company:
Guangzhou Fenghuo Industrial Co., Ltd.

Address:
No.10 D Building Huayuan Mansion No.81 Tianhe Street Tianhe Road Tianhe District, Guangzhou, Guangdong, China (Mainland) Zip: 51

Phone:
+86-20-87265650 +87265770

DC Pulsed TIG Welding Machine

Specifications:1) Rated input voltage: 380V/3Ph/50 - 60Hz2) Rated input current: 20A, 29A, 40A3) Rated input power: 13.5kVA, 19kVA, 26kVA4) No-load voltage: 66V5) Pulse frequency: 0.5 - 500Hz6) Pulse and empty ratio: 15 - 100%7) Purge effect: 20 - 80%8) Time for rising: 0 - 10s9) Time for decreasing: 0 - 10s10) Time for gas lag-cutting: 3 - 10s11) Time for gas pre-feeding: 0.1s12) Welding current: 10 - 315A, 10 - 400A, 10 - 500A13) Rated duty cycle: 60%14) Efficiency (under rated conditions): ≥0.8515) Welding thickness: ≥0.3mm thin and medium plate16) Dimensions: 620 x 340 x 595mm, 620 x 340 x 770mm17) Weight: 49kg, 59kg, 63kg18) Insulation degree: F19) Cover protection degree: IP21SPacking:Wood or paper package

Add to Basket

Web address

Other goods of this manufacturer :

DC TIG Welding Machine
	Features:1) PWM control system provides constant current and precise current control2) Multi-protection function3) Soft magnetic ferrite materials for main transformer and IGBT power componentsfor hig

DC TIG Welding Machine (WS Series)
	Features:1) Adopts international advanced technology2) Applicable to welding carbon steel, stainless steel, and copper3) Large scale of welding current starting from 5A4) Strong ability against power

DC TIG Welding Machine (WS Series)
	Features:1) Adopts international advanced technology2) Applicable to welding carbon steel, stainless steel, and copper3) Large scale of welding current starting from 5A4) Strong ability against power

Inverter Plasma Air Cutting Machine
	Features:1) By means of advantage inverter technology with MOSFET in design2) PWM control system provides constant current and precise current control3) High efficiency, small no-load consumption and

Inverter Plasma Air Cutting Machine (LGK7 Series)
	Features:1) Manual welding and TIG welding function 2 in 12) By means of advantage inverter technology with MOSFET in design3) PWM control system provides constant current and precise current control4

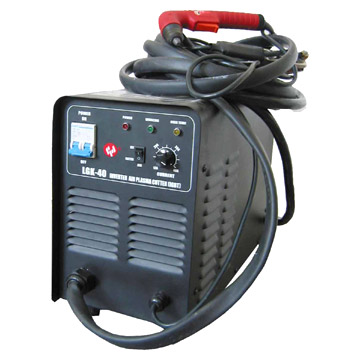

LGK Series Inverter Plasma Air Cutting Machine
	Features:1) PWM control technology makes current constant and precise in currentcontrol2) The core of main transformer adopts ferroxcube3) The component for inverter is IGBT, which increases efficienc

LGK Series Inverter Plasma Air Cutting Machine
	Features:1) PWM control technology makes current constant and precise in currentcontrol2) The core of main transformer adopts ferroxcube3) The component for inverter is IGBT, which increases efficienc

LGK-7 Series Inverter Plasma Air Cutting Machine
	Features:1) By means of advantage inverter technology with MOSFET in design2) PWM control system provides constant current and precise current control3) High efficiency, small no-load consumption and

MZ Series Auto Submerged Arc Welding Machine
	Features:Integrating international advanced technologies reaching international standard.Special arc ignition technology ensures excellent arc ignition capacity.*Equalizing circuit enables it to pro
