Recessed Mount Magnetic Contact

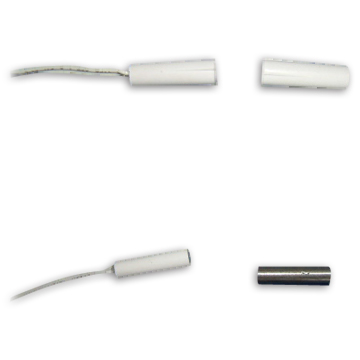

Specifications:1) Figure:a) RW-M10 series: 3/8" (diameter) x 9/16" (length)b) RW-M15 series: 1/4" (diameter) x 9/16" (length)2) Contact form: 1A3) Installation: recessed mount4) Detection gap: ordinary products >15mm5) Main characteristics:a) RW-M10 series:i) Color: white (WH) and brown (BR)ii) The specification and length of leads: an ordinary product,the lead is 22AWG, 18" , stated length must be explained after PNiii) The kinds of leads: standard leads (-) (ZIP)iv) Super-mini contacts, ideal for tight fitting window frames and thindoorframesv) Ordinary magnet is 1/4" x 0.54", but can complete with many kinds ofmagnets, accessional figure after PN is the size of magnetsb) RW-M15 series:i) Color: white (WH) and brown (BR)ii) The specification and length of leads: ordinary products, the lead is22AWG, 18"special products, the lead is 26AWG, 18", stated length mustbe explained after PNiii) The kinds of leads: standard leads (-)iv) Really super-mini contacts, ideal for window screensv) Ordinary magnet is 1/4" x 0.54", complete with donut magnets;accessional explanation "DM" after PN is the way to express magnets6) Ordinary products RW-M10 series 1,250pcs every box, RW-M15 series 1,500pcsevery box7) Compliant with RoHS8) Order information and explanation:a) RW-M10 WH: white ordinary productsb) RW-M10 BR DM: brown products, donut magnet, detection gap >9.5mmc) RW-M10 WH W/1/4" x 1 1/4": white products, bare magnets 1/4" x 1 1/4,detection gap >18mmd) RW-M10 BR 8` ZIP: brown products, wire is 22AWG 8` length ZIP wiree) RW-M15 BR 26AWG: brown products, wire is 26AWG 18` length ZIP wiref) RW-M15 WH DM: white products, donut magnets, detection gap >9.5mm

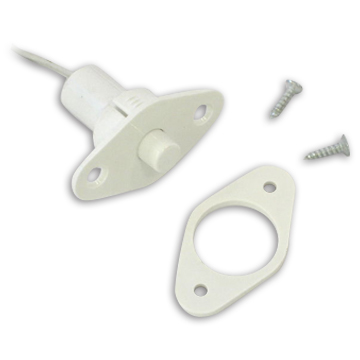

Specifications:1) Contact form: 1A2) Recessed mount3) Main characteristics:a) Press fit contactsb) Colors: white, brown availablec) Packing includes screws and spacersd) RW-22 wire: 22AWG, 18" in leng

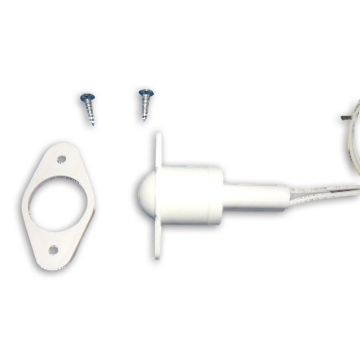

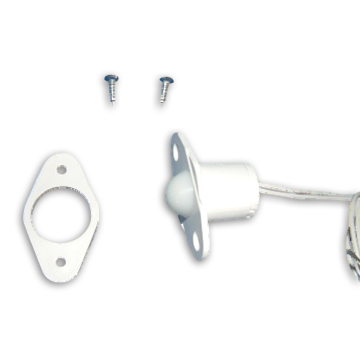

Product Name: Recessed Mount Magnetic ContactModel Number: RW-22, R-TC22Place of Origin: ChinaSpecifications:1) Contact form: 1A2) Recessed mount3) Main characteristics:a) Press fit contactsb) Colors:
