Control Valve
ZJHP (M) pneumatic single seat (sleeve) control valve is made up of pneumatic multispring diaphragm actuator and lower flow resistance straight single seat valve(sleeve). The single valve is connected directly with its guiding structure onthe cap; with its corn is ram structure, which is smaller and lighter than normalsingle seat valve and its flux is bigger than normal sleeve valve. It is widelyapplied in industry process and automatic controlling systems.Specifications:1) Body type: straight-line single seat (sleeve) foundry valve S style2) DN: DN20 - 300mm3) PN: PN1.6, 4.0, 6.4MPa4) Connecting way: flange style JB78-59, JB/T79.2-94 concave style5) Material: HT200, ZG230-45,0 ZG1Cr18Ni9Ti, ZG0Cr18Ni12M02Ti6) Back cover:a) Normal temperature: -20 - +200°Cb) Heat elimination: -40 - +450°C7) Packing: V-pattern PTFE, soft graphite, stainless steel bellows8) Corn type: upper-operated single seat (sleeve) ram core9) Flow characteristics: linearity, percentage character or quick opening character10) Actuator: multi spring diaphragm actuator11) Gasket: rubber asbestos board, 1Cr18Ni9Ti12) Film material: nitride rubber13) Dacron spring range: 20 - 100, 40 - 200, 80 - 240, 20 - 6014) Compress spring: 60Si2Mn, 60 - 100kPa15) Handspike: 2Cr1316) Air pressure: 0.14, 0.16, 0.28MPa17) Film cap: A318) Air supply tie-in: inner worm M10X119) Liner cap: 2Cr1320) Valve function type: on/offPacking: wooden cases
ZDSJP (M) mini-type electric pneumatic single seat (sleeve) control valve is made up of lower resistance through single seat valve or lower resistance sleeve valve attached PS or 3810 series actuator
Features:1) CG check valves conform to ASME B16.342) Each tested according to API 589, and marking is per MSS SP-253) Three bonnet designs:a) Boltedb) Weldedc) Pressure seal4) Three different design c

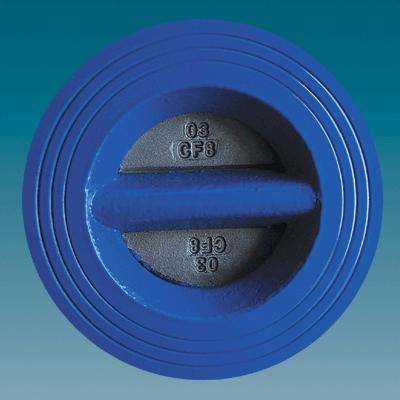

Product Name: Double-Disc Wafer Check ValveModel Number: H76HPlace of Origin: ChinaFeatures:1) CG check valves conform to ASME B16.342) Each tested according to API 589, and marking is per MSS SP-253)
ZAJQ intelligent electric ball valve is a close-coupled structure, attached with electric actuator, has input control signal (4 - 20mADC or 1 - 5VDC) and single-phase power to control its working. It
ZAJQ intelligent electric ball valve is a close-coupled structure, attached with electric actuator, has input control signal (4 - 20mADC or 1 - 5VDC) and single-phase power to control its working. It
1) Specification: metric DN15-DN20002) Size: 1/2 - 78"3) Standard: GB, HG, HGJ, SH, SY, DL, ASME, AN, SI, JIS, and DIN4) Material: stainless steel such as 304/304L/316/316L/316Ti/321; super duplex sta
