EMI Shielding Gasket (EMI защитные прокладки)

Zoom in

Producer information

Company:
Suzhou Kanglida Electronics Materials Co., Ltd.

Address:
(East Side) Inside 47 Jinshan Road, Mudu Town, Wuzhong, Suzhou, Jiangsu, China (Mainland) Zip: 215101

Phone:
+86-512-66563293

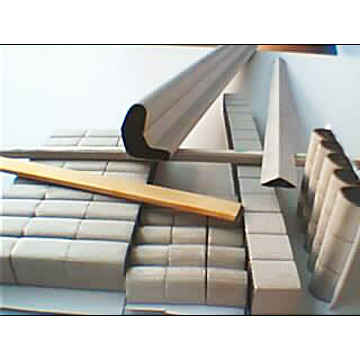

EMI Shielding Gasket

Conductive and corrosion resistant conductive fiber cloth, as the lining of lowercompression PU foam, has good shielding effectiveness. Conductive fiber cloth ismade of polyester fiber with copper and nickel metal woven fiber surface. Highconductive fiber bottom of copper and nickel surface is firework corrosion resistantmetal. The combination of copper and nickel provides excellent conductiveand shielding effects. Conductive foam at 100kHz to 10GHz frequency range is available for good shielding effectiveness.Features:1) Surface resistance: ≤0.05Ω/inch (100g load capacity)2) EMI effectiveness: 60 - 80dB/30MHz - 1GHz3) Thermal temperature : -10° - 110°4) Adhesion strength: ≥1.3kg/25mm5) Initial adhesion strength: 1,600g/25mm (non-conductive type)6) Maintained adhesion strength: 1,440min/inch7)Fire rating: UL94 V0Automotive spongeFeatures:1) Density: 50kg/cbm2) Foundation: 75%3) Flexibility: 30%Conductive cloth (outer cover)Features:1) Material: polyester fiber 0.09mm, 0.096mm gold is Cu0.003mm +Ni0.003mm2) Surface impedance: 0.022 - 0.03Ω/inch3) Fracture rate: 20/22% (WP/WT)4) Using temperature: -10°C - 170°C5) Tensile strength: 25.4 / 24.4kg.f/25mm (WP/WT)6) Shielding performance: 60 - 80dB / 30MHz - 1GHz7) Ripstop type and taffeta typeConductive double-sided plastic double-sided tapeFeatures:1) Material: no substrate acrylic plastic + nickel Ni2) Temperature: -20°C - 100°C3) Thickness: 0.05mm4) Binding edge: 1,600g/25 x 25mm5) Stripping strength: 1.6kg/25mm6) Edge: 1kg/25 x 25mm/24hrs7) Surface impedance: ≤0.03Ω

Add to Basket
