Description

Repair & Construction / Insulation & Glues / Other Insulation Materials /

Zoom in

Producer information

Company:
Xiamen Tenchi Import & Export Co., Ltd.

Address:
Room 603, Huicheng Commercial Center, No.839 Xiahe Road, Siming, Xiamen, Fujian, China (Mainland) Zip: 361004

Phone:
+86-592-5823387

Porcelain Stay Insulator for Line

Leakage distance: 47.6mmMechanical failing load: 53kNPower-frequency flashover voltage: dry 30kV, wet 15kVWeight: 7.8kg

Other goods of this manufacturer :

Porcelain Stay Insulator for Line
	Leakage distance: 41mmMechanical failing load: 44kNPower-frequency flashover voltage: dry 25kV, wet 12kVWeight: 4.9kg

Porcelain Stay Insulator for Line ANSI54-1
	Leakage distance: 41mmMechanical failing load: 44kNPower-frequency flashover voltage: dry 25kV, wet 12kVWeight: 4.9kg

Porcelain Stay Insulator for Line ANSI54-2
	Leakage distance: 47.6mmMechanical failing load: 53kNPower-frequency flashover voltage: dry 30kV, wet 15kVWeight: 7.8kg

Porcelain Stay Insulator for Line ANSI54-3
	Leakage distance: 57mmMechanical failing load: 89kNPower-frequency flashover voltage: dry 35kV, wet 18kVWeight: 12.3kg

Porcelain Stay Insulator for Line ANSI54-4
	Leakage distance: 76mmMechanical failing load: 89kNPower-frequency flashover voltage: dry 40kV, wet 23kVWeight: 17.6kg

Porcelain Stay Insulator for Line GY-2
	Power-frequency wet withstand voltage: 15kVStand or wire rope size: 19/2.00mmMechanical failing load: 71kN

Porcelain Stay Insulator for Line GY-4
	Power-frequency wet withstand voltage: 30kVStand or wire rope size: 19/2.75mmMechanical failing load: 222kN

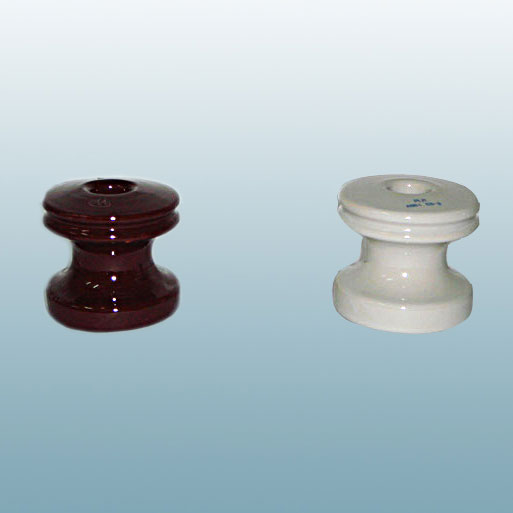

Spool Insulator
	Transverse strength: 8,900NLow frequency voltage dry flashover: 20kVLow frequency voltage wet flashover (vertical): 8kVLow frequency voltage wet flashover (horizontal): 10kVWeight: 2.2kg

Spool Insulator
	Transverse strength: 13,300NLow frequency voltage dry flashover: 25kVLow frequency voltage wet flashover (vertical): 12kVLow frequency voltage wet flashover (horizontal): 15kVWeight: 5.4kg
