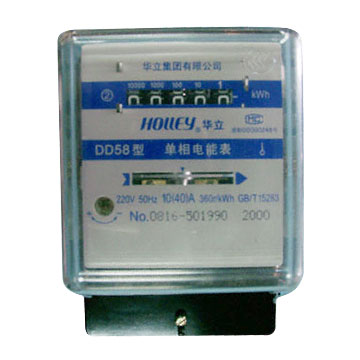

Product Name: Single Phase Electromechanical MeterModel Number: HLD01Place of Origin: ChinaSpecifications:1) Nominal current (ib): 1.5, 2.5, 3, 5, 10, 15, 20, 30A2) Maximum current: 6. 10, 12, 20, 40, 60, 8, 100A3) Constant: 2,400, 1,400, 1,200, 720, 360, 240, 180, 120r/kW/h4) Rotor speed at ib: 13.2 r/min5) Rotor torque at ib: 4.5 x 10-4N.m6) Voltage consumption: 0.9/4W/VA7) Overload capacity: 400% ib8) Accuracy: class 2.09) Service life: 10 years10) Rated voltage (Un): 220V11) Rated frequency (fn): 50Hz12) Voltage coil loss at 50Hz, Un: 1.0W/5VA13) Current coil loss at 50Hz, ib: 0.3VA14) Creep: 0.8-1.1Un15) Starting current: 0.5% ib16) AC voltage 50Hz, 1 min:a) Between line and earth: 2.5kVb) Between line: 600V17) Impulse voltage 1.2/50us: >6kV18) Rotor mass: 24g19) Total meter mass: 1.5-1.6kg
Product Name: Single Phase Electromechanical MeterModel Number: LD68Place of Origin: ChinaSpecifications:1) Nominal current (ib): 1.5, 2.5, 5, 10, 15, 20, 30A2) Maximum current (Imax): 6, 10 or 15, 20
Product Name: Single Phase Electromechanical MeterModel Number: HLD03Place of Origin: ChinaSpecifications:1) Nominal current (ib): 1.5, 2.5, 5, 10, 15A2) Maximum current (Imax): 6, 10 or 15, 20 or 30,
Specifications:1) Nominal current (ib): 1.5, 2.5, 5, 10, 15A2) Maximum current (Imax): 6, 10 or 15, 20 or 30, 40 or 60, 60 or 100A3) Thermal capacity: ib and Imax (A)4) Reference voltage: 120/127/220/
Specifications:1) Nominal current (ib): 1.5, 2.5, 5, 10, 15, 20, 30A2) Maximum current (Imax): 6, 10 or 15, 20 or 30, 40 or 60, 60 or 100,80 or 100A3) Transformer current (only for transformer-connect
Product Name: Single Phase Electronic MeterModel Number: DDS28Place of Origin: ChinaSpecifications:1) Connection: directly connected or CT/PT connected2) Standard reference voltage: 220V3) Optional re
Specifications:1) Connection: direct or CT operated2) Rated voltage: 220V3) Optional voltage: 110/120/220/230/240V4) Rated frequency: 50/60Hz5) Starting current: 0.4% ib6) Power loss in voltage loop:7
