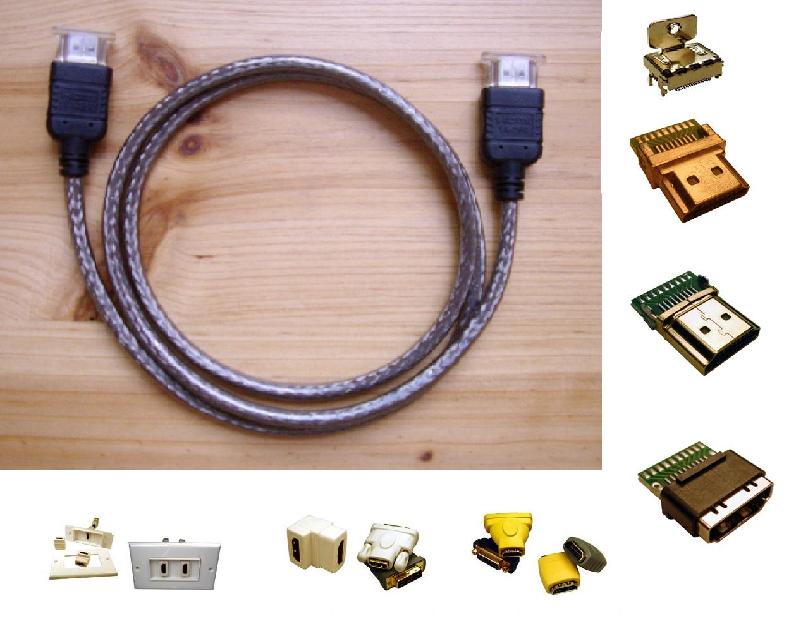

SCSI Connector / Connector / HDMI Connector / Pcb Connector / Pin Header
SCSI mini ribbon, mini d-sub series connector. Male solder assembly type for cable14pin, 20pin, 26pin, 36pin, 50pin 68pin, 100pin abaiableFeature:A series of high density connector with 1. 27mm (0. 050") spacing.Suitable for cable end.Conforms to the American national standards institute (ANSI) specifications.Choice of bracket configurations includes: without rails and latch, and with latch only.All plastic type available in 50, 68 positions.Insulator is made of polyester resin and glass fiber reinforced (UL 94-0) providing superior heat and chemical resistance.Application to miniaturized electronic equipment such as personal computers, facsimiles and other OA equipment.Recognized UL under the component program of underwriters laboratories inc. File no. E112081.Electrical:Rated current: 1 ampInsulation resistance: 500m ohms min.Contact resistance: 35 m ohms max.Dielectric withstanding voltage: AC 250v (for 1 minute) .Operating temperature: -25 ~ + 85Mechanical:Insulator material: PBT with glass-fiber reinforced (UL 94v-0) .Contact material: phosphor bronze.
