DVB-S Receiver

Features:1) MPEG-2 fully DVB compliant2) Wide symbol rate: 1 - 45Mbauds and frequency input: 950 - 2,150MHz3) SCPC/MCPC receivable from C/Ku-Band satellites4) 13/18V, 0/22kHz, 0/12V LNB control5) DiSEqC 1.0 & 1.2 supported6) Picture in graphic (PIG) support7) Variable aspect ratio (4:3, 16:9) with pan vector8) PLL RF-modulator UHF 21 - 69 with PAL I/G/B/D/K, NTSC M/N9) 4,000 channels TV and radio programmable10) Multi-language menu (English, German, Turkish, Arabic, Russian,Persian)11) EPG (electronic program guide) for on-screen channel information12) 256 colors graphic user interface13) Various channel editing function (favorite, move, lock, rename and sort)14) Teletext and sub-title support15) Favorite channel and parental lock function16) RS232C port for additional information service and upgrading systemsoftware17) Pause function while stopping a scene18) Supports multi-satellite scan19) UCAS for Irdeto / Viaccess / Nagravision / Mediaguard20) GamesSpecifications:1) Tuner and demodulator:a) RF input connector: F-Female, IEC 169-24b) RF frequency range: 950MHz to 2,150MHzc) Input impedance: 75 unbalancedd) Input signal level: -60dBm to -30dBme) IF frequency: zero IFf) LNB power:i) Vertical: 13.0V DCii) Horizontal: 18.0V DCiii) Current: 500Ma (max.)iiii) Overload protectiong) LNB control: DiSEqc1.0, DiSEqc1.2h) Band switch control: 22kHz tone, 22kHz tonei) Frequency: 22± 2kHzj) Amplitude: 0.6± 0.2Vk) Demodulation: QPSKl) Symbol rate: 1 to 45Msps/s2) A/V decoding:a) Transport stream: MPEG-2 ISO/IEC 13818b) Profile level: MPEG-2 MP@MLc) Input rate: max. 60Mbit/sd) Aspect ratio: 4:3, 16:9 (letter box)e) Video resolution: 720 x 576 (PAL), 720 x 480 (NTSC)f) Audio decoding: MPEG Layer I and IIg) Audio mode: single channel / dual channel joint stereo/ stereoh) Sampling rate: 32, 44.1 and 48kHzi) Graphic engine: 3-display plane, 1-background plane/ 256 full color3) Memory:a) CPU: Sti5518b) Flash memory: 2 Mbytesc) Graphic and system memory (SDRAM): 8 Mbytes4) A/V data in/out:a) TV scart (optional): video output (CVBS, RGB), audio outputb) VCR scart (optional): video output (CVBS), video input (CVBS, RGB),audio in/outputc) Video: RCA/Cinch, video output (CVBS)d) Audio R/L: RCA/Cinch volume and mute controle) RS-232C: transfer rate 115.2Kbps, 9Pin D-sub type5) RF-modulator (optional):a) RF-connector: 75 169-2, male/femaleb) Frequency: 470 to 860 MHzc) Output channel: CH 21 - 69 for the demodulatord) TV standard: PAL B / G / I / D / K / Me) Preset channel: Ch 21 (or TBD), software changeable by menu6) Power supply:a) Input voltage: 100 to 240 VAC, 50Hz/60Hzb) Type: SMPSc) Power consumption: max. 35W7) Environment:a) Operating temperature: +5°C ~ +50°Cb) Storage temperature: - 40°C ~ +65°C8) Physical specifications:a) Dimensions (W x D x H): 280 x 234 x 55mmb) N.W.: 2kg

Add to Basket

Web address

Other goods of this manufacturer :

DVB-S Receiver
	Features:1) Built-in smart card reader with embedded conax conditional access2) Common interface with two CI slots for irdeto, viaccess, nagravision,conax, cryptoworks, mediaguard, and others3) DVB/MP

DVB-S(Victory6010)
	Features:1) MPEG-2 fully DVB compliant2) Wide symbol rate: 1 - 45Mbauds and frequency input: 950 - 2,150MHz3) SCPC/MCPC receivable from C/Ku-Band satellites4) 13/18V, 0/22kHz, 0/12V LNB control5) DiSE

DVB-S(Victory6018)
	Features:1) MPEG-2 fully DVB compliant2) Wide symbol rate: 1 - 45Mbauds and frequency input: 950 - 2,150MHz3) SCPC/MCPC receivable from C/Ku-Band satellites4) 13/18V, 0/22kHz, 0/12V LNB control5) DiSE

DVB-T
	Features:1) LED display and friendly operating interface2) Stores 1,000 channels3) Owning disconnect power memory function4) Supports OSD TV picture VBI, color screen display5) Supports English / Germ

DVB-T
	Product Name: DVB-TModel Number: DVB-T9700Place of Origin: ChinaFeatures:1) LED display and friendly operating interface2) Stores 1,000 channels3) Owning disconnect power memory function4) Supports OS

DVB-T (metabox-III)
	Product Name: DVB-T (metabox-III)Model Number: DVB-S5600Place of Origin: ChinaFeatures:1) Built-in smart card reader with embedded conax conditional access2) Common interface with two CI slots for ird

DVB-T Receiver
	Features:1) Fully DVB-T and MPEG-2 compliant2) Digital reception covers VHF and UHF band3) Wide screen 16:9 and normal 4:3 aspect ratio4) Bandwidth of 6MHz and 7MHz and 8MHz supported5) Teletext/Bit M

DVB-T Receiver
	Product Name: DVB-T ReceiverModel Number: DVB-T5518Place of Origin: ChinaFeatures:1) Fully DVB-T and MPEG-2 compliant2) Digital reception covers VHF and UHF band3) Wide screen 16:9 and normal 4:3 aspe

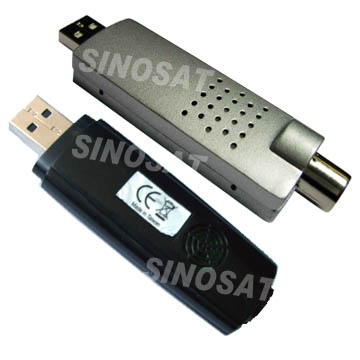

DVB-T USB
	Product Name: DVB-T USBPlace of Origin: ChinaFeatures:1) Fully comply with DVB-S and MPEG-2 standards2) Comply with EN301 192 DVB data broadcast MPEG3) Automatic network search for newly added channel
