Product Name: 9-Channel Digital Multiplex RecorderModel Number: TWD776Place of Origin: China1) Video format: NTSC/EIA or PAL/CCIR2) Hard disk storage: IDE type, UTMA 66 above, 1 removable HDDs supported3) Record mode: manual / alarm / timer4) Camera input signal: composite video signal 1Vp-p 75Ω BNC, 9 channels5) Camera loop back: composite video signal 1Vp-p 75Ω BNC, 9 channels6) Main monitor output: composite video signal 1Vp-p 75Ω BNC7) Call monitor output: composite video signal 1Vp-p 75Ω BNC8) Motion detect area: 15 x 12 targets per camera (NTSC), 15 x 14 targets per camera(PAL)9) Audio input: 4 audio input, (RCA)10) Audio output: 2 audio output, (RCA)11) Motion detect sensitivity: 256 levels12) Video loss detection: yes13) Refresh rate: up to 120 images/sec for NTSC / 100 images/sec for PAL14) Recording rate: 25 images/sec for NTSC / 18 images/sec for PAL15) Dwell time: programmable (1~10sec)16) Picture in picture: yes (movable)17) Key lock: yes18) Picture zoom: 2 x 2 (movable)19) Camera title 6 letters20) Video adjustable on channels: color / contrast / brightness adjustable21) Alarm input: TTL input, Hi (5V), Low (GND)22) Alarm output: COM / N.O. / N.C.23) Time display format: YY/MM/DD, DD/MM/YY, MM/DD/YY, OFF24) Power source: AC100~240V ± 10% switching adaptor25) Power consumption:26) Operation temperature: 10 ~ 40°C27) RS-232C / RS-485 (bps): 115200, 57600, 19200, 9600, 4800, 3600, 2400, 120028) Dimensions: 380 x 270 x 65mm (W x L x H)29) Net weight: 5.2kg
The above picture just for your reference, optional Sharp CCD.Features:Model: TWD-C001 (TWD-C002)1) Pickup device: 1/4" super HAD Sony CCD2) Number of pixels: PAL: 500 (H) x 582 (V) NTSC: 510 (H)
Product Name: Color CamerasModel Number: TWD-C001~TWD-C005APlace of Origin: ChinaThe above picture just for your reference, optional Sharp CCD.Features:Model: TWD-C001 (TWD-C002)1) Pickup device: 1/4&
The above picture is just for your reference, optional Sharp CCD.Model: TWD-D0011) Pickup device: 1/4" Sony Super HAD2) Number of pixels: PAL: 500(H) x 582(V); NTSC: 510(H) x 492(V)3) System of s
The above picture is just for your reference, optional Sharp CCD camera available.Model: TWD-D002 II1) Pickup device: 1/3" Sony super HAD CCD2) Number of pixels PAL: 500(H) x 582(V); NTSC: 510(H)

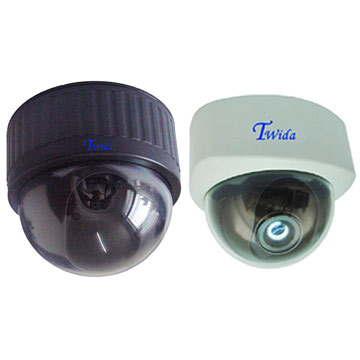

Product Name: Color Dome CameraModel Number: TWD-D001II, TWD-D003AIIPlace of Origin: ChinaThe above picture is just for your reference, optional Sharp CCD camera available.Model: TWD-D002 II1) Pickup
Product Name: Color Dome CameraModel Number: TWD-D001~TWD-D003APlace of Origin: ChinaThe above picture is just for your reference, optional Sharp CCD.Model: TWD-D0011) Pickup device: 1/4" Sony Su
The above picture just for your reference, optional Sharp CCDModel: TWD-F0011) Pickup device: 1/4" Sony super HAD CCD2) Number of pixels: PAL: 500(H) x 582(V), NTSC: 510(H) x 492(V)3) System of s
Specifications:1) Pickup device: 1/4" Sony super HAD CCD, Sharp CCD available2) Number of pixels: PAL: 500 (H) x 582 (V); NTSC: 510 (H) x 492 (V)3) System of signal: PAL / NTSC4) Horizontal resol

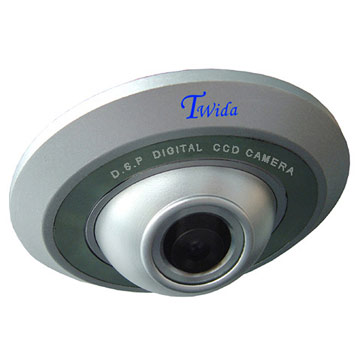

Product Name: Color Flying-Saucer Shaped CameraModel Number: TWD-F002, TWD-F004Place of Origin: ChinaSpecifications:1) Pickup device: 1/4" Sony super HAD CCD, Sharp CCD available2) Number of pixe
