The above picture is just for your reference, optional Sharp CCD.Model TWD-A001:1) Pickup device: 1/3" Sony super HAD CCD2) Number of pixels NTSC: 510(H) x 492(V); PAL: 500(H) x 582(V)3) System of signal: NTSC/PAL4) Horizontal resolution: 420 TV lines5) Minimum illumination: 0lux/F1.2 (IR on)6) Lens mount: C/CS mount (C mount adaptor option)7) Backlight compensation: ON/OFF (switchable)8) AGC: on/off (switchable)9) Electronic shutter: 1/50(1/60) ~ 1/100,000sec10) Iris control: video/DC11) White balance: auto12) S/N ratio: >48dB13) Gamma correction: >0.4514) Operation temperature: -20 ~ 50oC15) Sync. system: internal16) Video output:oC1.0Vp-p/75Ω17) Power supply: DC 12V18) Dimensions: 119(L) x 60(W) x 54(H)mm19) Weight: 373gModel TWD-A002, TWD-A002A:1) Pickup device: 1/3" Sony super HAD CCD2) Number of pixels NTSC: 768(H) x 494(V); PAL: 752(H) x 582(V)3) System of signal: NTSC/PAL4) Horizontal resolution: 480 TV lines5) Minimum illumination: 0lux/F1.2 (IR on)6) Lens mount: C/CS mount (C mount adaptor option)7) Backlight compensation: ON/OFF (switchable)8) AGC: on/off (switchable)9) Electronic shutter: 1/50(1/60) ~ 1/100,000sec10) Iris control: VIDEO/DC11) White balance: auto12) S/N ratio: >52dB13) Gamma correction: >0.4514) Operation temperature: -20 ~ 50oC15) Sync. system: internal16) Video output:oC1.0Vp-p/75Ω17) Power supply: DC 12V18) Dimensions: 119(L) x 60(W) x 54(H)mm19) Weight: 373g

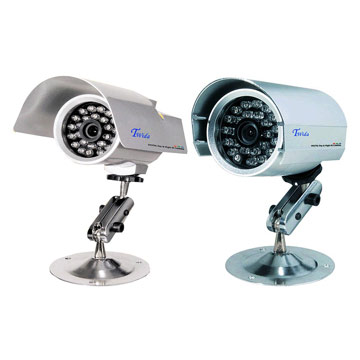

Product Name: Color, B/W Infrared Sensitive Night Vision CameraModel Number: TWD-A001, TWD-A002, TWD-A002A/pPlace of Origin: ChinaThe above picture is just for your reference, optional Sharp CCD.Model
Model no.: TWD-FD001Features:1) Pickup device: 1/3" Sony super HAD CCD2) Number of pixels: PAL: 500 (H) x 582 (V); NTSC: 510 (H) x 492 (V)3) System of signal: NTSC/PAL4) Horizontal resolution: 42
Product Name: Dome CameraModel Number: TWD-FD002Place of Origin: ChinaModel: TWD-FD002The above picture is just for your referrence and optional Sharp CCD is available
Product Name: Dome CameraModel Number: TWD-FD001Place of Origin: ChinaModel no.: TWD-FD001Features:1) Pickup device: 1/3" Sony super HAD CCD2) Number of pixels: PAL: 500 (H) x 582 (V); NTSC: 510
1)MPEG4 compression format2)Remote surveillance on mobile phone via 3G & GPRS, or on PC through internet connection3)Easy backup with USB FLASH DRIVE4)Alarm trigger recording will send images to desig

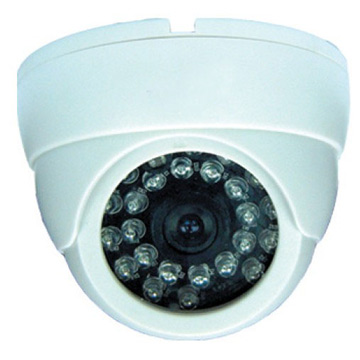

Product Name: Infrared Dome CameraModel Number: TWD-ID003, TWD-ID004Place of Origin: ChinaModel: TWD-ID0031) Pickup device: 1/4" Sony Super HAD CCD2) Number of pixels:a) PAL: 500 (H) x 582 (V)b)
Model: TWD-ID0031) Pickup device: 1/4" Sony Super HAD CCD2) Number of pixels:a) PAL: 500 (H) x 582 (V)b) NTSC: 510 (H) x 492 (V)3) System of signal: NTSC/PAL4) Horizontal resolution: 420TV lines5
The above picture just for your reference, optional Sharp CCD.Features:Model: TWD-I001, TWD-I001/1, TWD-I001/21) Pickup device: 1/4" Sony Super HAD CCD2) Number of pixels PAL: 500 (H) × 582 (V) N
