Mobile DVR / Standalone DVR
Product Name: Mobile DVR / Standalone DVRPlace of Origin: ChinaWe can supply a variety of DVRs: stand-alone DVR, mobile DVR, UTP video baluns.Model: VG-8516 (stand-alone DVR)1) Video input: PAL, NTSC2) 16 channel composite video input (BNC port, 1Vp-p, 75 ohms)3) Video output: PAL, NTSC4) A composite video output (BNC port, 1Vp-p, 75 ohms)5) A VGA output (frequency: 60 ~ 85Hz, resolution ratio: 480 x 320 ~ 1,024 x 768)6) Audio input: 8 channels audio input (lotus, 20 ~ 100MV, 10k ohms)7) Audio output: 1 audio output (lotus, 20 ~ 100MV, 1k ohms)8) Alarm ports9) Alarm input: 9 alarms input10) Alarm output: 4 alarms output11) Compression arithmetic: video compression: H.264, audio compression: G.72212) Image resolution ratio: real time display (704 x 576), video compression CIF(352 x 288)13) Audio sampling ratio: 8k sampling point per second, 16 bit per sampling point14) Quality of the record: 6 in all, from high to low15) Operating system: embedded real time operating system (RTOS)16) Network port: adaptive Ethernet port of 10M/100M17) HDD: supports 8 parallel IDE and 2 SATA18) Series port: RS48519) Backup: SATA, network20) Power supply: 220±30%V, 50±3%Hz21) Working temperature: -10 ~ 55°C22) Working humidity: 10 ~ 90%23) Power consumption (without hard disk): 30W24) Dimensions (W x D x H): 440 x 435 x 96.6mmModel: VG-8804 (mobile DVR)1) MPEG 2 compression technology, high quality video2) Video resolution up to D1 (704 x 574) for one channel3) Max. 4 video input, 4 audio input4) 8 ~ 32V operation supported5) Highly efficient power management, supports scheduled power on and off,supports power down after specified time6) Removable hard drive, supports 2.5" hard drive7) Shockproof cradle, ruggedize design8) Continuous record, record on alarm supported9) Vehicle telemetry, (such as speed, route, car ID, ETC) can be stored in the video10) Error-proof file system design. Comparable with FAT3211) File certificate with water mark value12) GPS in formation processing and recording with video13) Motion detection supported14) Power in: DC, 8 ~32V15) Power out: 12V DC, max. current 1A16) Video input: 4 channels, 1.0Vp-p, 75 ohm, BNC17) Video output: 1 channel18) Video standard: PAL/NTSC19) Audio input: 2 channels, line in, 50 ~ 4,000MV, 50 ~ 350Hz20) Audio output: 1 channel21) Compression: MPEG222) Recording mode: 704 x 576, 25fps (PAL), 30fps (NTSC)23) Storage: hard disk drive (2.5")24) Alarm input: 4 channels alarm input25) Alarm output: 2 channels alarm output26) Ethernet: 10/100Base-T, RJ-4527) PTZ connector: RS485Model: VG-T404 (active UTP video balun)1) Active balun2) 4 Channels video3) Enables cost-effective4) High quality image5) Color: 1,800M - 2,400M6) B/W: 2,400M - 3,000M
Product Name: 1 Channel Active UTP Video BalunModel Number: VG-T301Place of Origin: ChinaFeatures:1) Model: VG-T301 2) Active balue3) 1 channel video4) Enables cost-effective5) High quality image6) Co
1 Channel passive UTP video balun (transmitter)1) Video frequency response: DC 6MHz2) Common-mode/differential-mode rejection: 15kHz-6MHzm 60dB type3) Dimensions: 55 x 25 x 25cm4) Weight: 50g5) Impeda
1 Channel passive UTP video balun (transmitter)1) Video frequency response: DC 6MHz2) Common-mode/differential-mode rejection: 15kHz-6MHzm 60dB type3) Dimensions: 55 x 25 x 25cm4) Weight: 50g5) Impeda

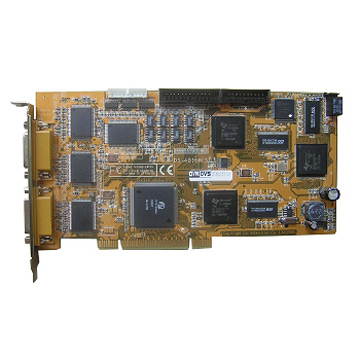

Product Name: 16 Channels Real Time Software Compression DVR CardModel Number: DF-8000Place of Origin: ChinaSoftware compression card: DF-80001) 16ch. real-time display and recording2) High resolution
