HJC-450 Angle Plastic Injection Shaper
Model: HJC-450Injection unit:1) Screw diameter: A D38mm, B D42mm2) Injection capacity: 158cm³, 193cm³3) Injection pressure: 145Mpa, 119MpaClamping unit:1) Clamping force: 450KN2) Interval space between mold pillors: no pillars3) Min. mould thickness: 170mm4) Opening stroke: 200mm5) Max. open daylight: 370mm6) Travel of ejector: 50mmControl system:1) Max. oil pressure: 14Mpa2) Tank capacity: 160L3) Engine power: 7.5kW4) Electrical heat: 4.75kWOthers:1) Weight of machine: 3.5MT2) Machine dimensions: 2.4 x 1.0 x 2.0m
 Add to Basket
 Web address
|
|
|
Other goods of this manufacturer : |
|
|
|
|
HJ-1680 Horizontal Injection Machine
|
|
Injection unit:1) Screw diameters: A D42mm, B D46mm, C 50mm2) Screw L/D ratio: 23, 21, 19.33) Shot size (theoretical): 290cbm, 348cbm, 412cbm4) Injection weight: 277g, 330g, 393g5) Injection rate: 118
|
| |
|
HJ-1680 Horizontal Injection Machine
|
|
|
Injection UnitScrew Diameter A D42mm B D46mm C50mmScrew L/D Ratio 23 21 19.3shot size(theoretical) 290Cm3 348Cm3 412Cm3Injection Weight 277g 330g 393gInjection Rate 21g/s 27 g/s 33 g/sInjection Pressu
|
| |
|
HJ-2180 Horizontal Injection Moulding Machine
|
|
Injection UnitScrew Diameter A D45mm B D50mm C55mmScrew L/D Ratio 23.3 21 19.1shot size(theoretical) 366Cm3 451Cm3 496Cm3Injection Weight 333g 410g 4963gInjection Rate 25g/s 27 g/s 39 g/sInjection Pre
|
|
|
|
HJ-2180Horizontal Injection Machine
|
|
|
Injection unit:1) Screw diameter: A D45mm, B D50mm, C D55mm2) Screw L/D ratio: 23.3, 21, 19.13) Shot size (theoretical): 366, 451, 496cm34) Injection weight: 333g, 410g, 4963g5) Injection rate: 139g/s
|
| |
|
HJ-2680 Injection Machine
|
|
Injection unitTechnical data:1) Screw diameter: 55mm, 60mm, 65mm2) Screw L/D ratio: 22.9, 21, 19.63) Shot sizes (theoretical): 569cm³, 678cm³, 796cm³4) Injection weight: 543g, 647g, 761
|
| |
|

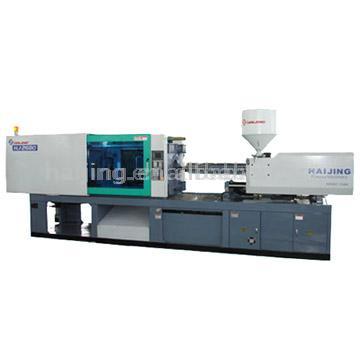

HJ-2680 Plastic Injection Machine
|
|
|
Product Name: HJ-2680 Plastic Injection MachineModel Number: HJ-2680Place of Origin: ChinaInjection unitTechnical data:1) Screw diameter: 55mm, 60mm, 65mm2) Screw L/D ratio: 22.9, 21, 19.63) Shot size
|
|
|
|
HJ-500 Horizontal Injection Machine
|
|
Model: HJ-500Injection Unit:1) Screw diameter: A D26mm, B D28mm, C30mm2) Screw L/D ratio: 24, 22, 203) Shot size (theoretical): 61, 71, 81cm³4) Injection weight 56g 64g 74g5) Injection rate: 50g/
|
| |
|
HJ-500 Horizontal injection mould machine
|
|
|
ModelItem HJ500A B CInjectionUnit Screw Diameter Mm 26 28 30Screw L/D Ratio L/D 24 22 20shot size(theoretical) Cm3 61 71 81Injection Weight G 56 64 74Injection Rate G/s 50 57 64Plasticizing Capacity G
|
| |
|

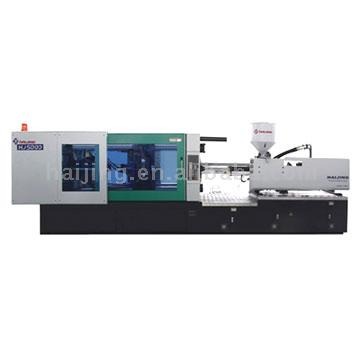

HJ-5000KN Injection Machine
|
|
Technical data:Injection unit:1) Screw diameter: A D80mm, B D85mm, C D90mm2) Screw L/D ratio: 21, 20, 193) Shot size (theoretical): 2,061cm3, 2,326cm3, 2,608cm34) Injection weight: 1,850g, 2,093g, 2,3
|
|
|
|
