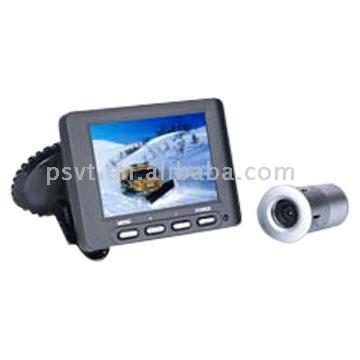

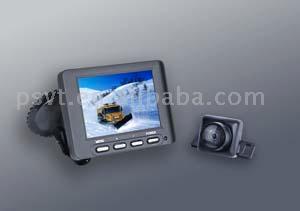

Monitor:1) 5.6" TFT LCD 4:32) View angle (U / D / L / R) (CR>10): 40 / 65 / 65 / 653) Brightness (CD/sqm): 500, contrast ratio: 300:14) Mirror / normal image switch5) Response time (ms) (at 25°C): 306) Power requirements: 12V DC, with control box (12 / 24V DC)7) Power consumption: 5W8) Operating temperature range: -15°C to +65°C9) Storage temperature range: -25°C to +85°C10) Dimensions: 150 (L) x 126 (W) x 27 (D)11) Weight: 510gCamera:1) Image type: color Sony CCD2) Picture elements: PAL: 500(H) x 582(V), NTSC: 510(H) x 492(V)3) Image size: 1/4"4) Mirror / normal image switch5) Lens: focal length 2.6mm, F2.0, lens angle: 103° (diagonal)6) Aluminum camera crust7) Waterproof grade: IP68, salt-mist test approval8) 18pcs IR LEDs for night vision (6 - 8m)9) Horizontal resolution: 330 TV Line10) Signal to noise ratio: ≥48dB (audio / non-audio optional)11) Power supply: DC 12V ±10%12) Power consumption: ≤1.5W13) Operating temperature range: -30°C to +65°C14) Storage temperature range: -40°C to +85°C15) Dimensions: 82(L) x 73(W) x 58(D)mm16) Weight (including mounting bracket ): 380gControl box:(2 camera input terminals, C1 rear view camera , C2 side view camera)1) Mirror / normal image switch for individual camera2) Power supply: 12 / 24V DC3) Power consumption: 12V DC 9W / 24V DC 18W4) Dimensions: 157 (L) x 76 (W) x 34 (D) mm5) Weight: 355gRemarks:1) Standard full set monitor system= monitor x 1 + camera x 1 + control box x 1 +20m cable x 12) Model: PSVT562B including AE-TM562 + AE-CM111 + AE-CB121 + AE-PL20Inner packing:1set/boxOuter packing:10sets/ctn

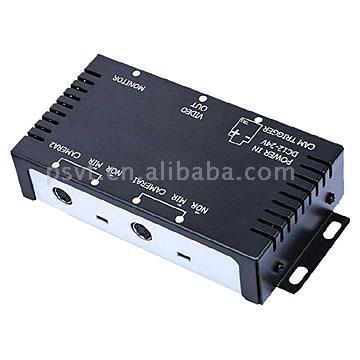

Features:1) Two-camera input control box2) Camera 1for rear view, camera 2 for side view3) Automatically switch to the rear view camera (image) when put your carin reverse4) Simultaneously connects mo
Features:1) Two-camera input control box2) Camera 1for rear view, camera 2 for side view3) Automatically switch to the rear view camera (image) when put your carin reverse4) Simultaneously connects mo
Features:1) The color TFT LCD monitor is designed for automotive rear view system2) You can use the system by a 11V - 30V DC car battery3) This monitor has the function of outset control box, can swit
Features:1) The color TFT LCD monitor is designed for automotive rear view system2) You can use the system by a 9V - 30V DC car battery3) This monitor has the function of outset control box, can switc
