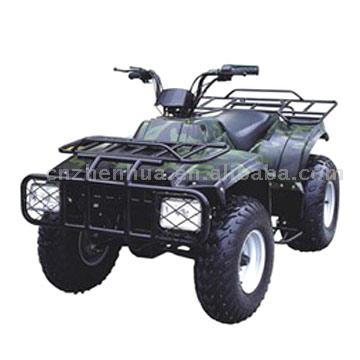

Description
All Terrain Vehicle Features:1) Engine type: 200cc/250cc single cylinder, 4-stroke, air-cooled/water-cooled2) Bore x stroke: 67 x 653) Max. power (kW/rpm): 11/6,500±5004) Max. torque (N.m/rpm): 17/5,500±5005) Compression ratio: 9.0 : 16) Engine displacement (ml) 192/2407) Engine oil capacity (L): 1±0.18) Lubrication: press and splash9) Ignition type: CDI10) Shift speed type: four forward, one reverse and one interior11) Clutch mode: manual12) Reverse type: interior13) Start mode: electrical14) Cooling: air-cooled/water-cooled15) Brake mode (front/rear): disc/disc16) Front suspension: dual A-arms and independent suspension17) Transmission mode: chain, two wheel-driven18) Front tire dimensions: 23 x 7-1019) Rear tire dimensions: 22 x 10-1020) Seat height (mm): 83021) Minimum turning radius (mm): 2,70022) Minimum ground clearance (mm): 17523) Fuel capacity (L): 9.824) Parking brake: mechanical lock25) Battery: 12V 14Ah26) Max. load capacity (kg): 15027) Rider capacity: 1 person28) Fuel consumption (L/100km): 529) Axle distance (mm): 1,26030) Front wheel distance (mm): 87031) Rear wheel distance (mm): 93032) Max. speed (km/h): 9033) Max. climbing degrees: 4534) Cover material: PP35) Length x width x height (mm): 1,880 x 1,140 x 1,12036) Color: red/yellow/green/black/two colors mixed37) Disassemble parts: rear armrest and tireInner packing:Iron boxOuter packing:CartonCarton dimensions: 1,675 x 1,010 x 830mmN.W.: 180kgG.W.: 218kgConveyance:Qty/20` GP: 12pcsQty/40` GP: 28pcsQty/40` HQ: 42pcs Add to Basket
Web address
Other goods of this manufacturer :
All Terrain Vehicle
Product Name: All Terrain VehicleModel Number: ZHST08Place of Origin: ChinaFeatures:1) Engine: 110cc/150cc, single cylinder, 4-stroke, air cooled2) Bore x stroke: 52.4 x 49.5mm3) Max. power (kW/rpm):
All Terrain Vehicle
Product Name: All Terrain VehicleModel Number: ZHST12Place of Origin: ChinaFeatures:1) Engine type: 200cc/250cc single cylinder, 4-stroke, air-cooled/water-cooled2) Bore x stroke: 67 x 653) Max. power
110cc ATV
Specifications:1) Engine type: 4-strokes, air cooled2) Transmission system: shaft drive / chain drive3) Bore x stroke (mm): 52.4 x 49.54) Piston displacement (ml): 1075) Maximum power (kW/r/min): 5.5/
150cc ATV
Features:2) Drive: chain drive3) Max. loading capacity: 120kg4) Engine type: 4-stroke, air cooled5) Cylinder arrangement: single cylinder6) Transmission system: chain drive7) Bore x stroke: 52.4 x 49.
150cc ATV
Features:1) Engine: 150cc, 4-stroke, air cooled, fully-automatic2) Power: 5.2kW / 7,500rpm3) Max. torque: 7.0N.m / 7,500rpm4) Max. speed: ≥60km/h5) Ground clearance: 130mm6) Transmission system:
200cc / 250cc ATV
Features:1) Engine type: 200cc / 250cc, single cylinder, 4 stroke, air / water cooled2) Transmission mode: chain / shaft drive3) Start way: electric start4) Max. speed: 80km/h5) Front / rear tire: 23
200cc / 250cc ATV
Features:1) Engine type: 200cc / 250cc, single cylinder, 4-stroke, air / water cooled2) Transmission mode: chain / shaft drive3) Start way: electric start4) Max speed: 80km/h5) Front/rear tire: 23 x 7
200cc / 250cc ATV
Product Name: 200cc / 250cc ATVModel Number: ZHST12Place of Origin: ChinaFeatures:1) Engine type: 200cc / 250cc, single cylinder, 4-stroke, air / water cooled2) Transmission mode: chain / shaft drive3
200cc / 250cc ATV
Product Name: 200cc / 250cc ATVModel Number: ZHST10Place of Origin: ChinaFeatures:1) Engine type: 200cc / 250cc, single cylinder, 4 stroke, air / water cooled2) Transmission mode: chain / shaft drive3
